Numerical simulation of multi-principal elements high-entropy alloy milling based on minimal quantity lubrication

WU Yanwei; LIU Yin; SUN Xingwei; YANG Heran; DONG Zhixu; ZHANG Weifeng

doi:10.13394/j.cnki.jgszz.2023.0265

Volume 45 Issue 3

Jun. 2025

Turn off MathJax

Article Contents

Article Navigation > Diamond & Abrasives Engineering > 2025 > 45(3): 332-341

WU Yanwei, LIU Yin, SUN Xingwei, YANG Heran, DONG Zhixu, ZHANG Weifeng. Numerical simulation of multi-principal elements high-entropy alloy milling based on minimal quantity lubrication[J]. Diamond & Abrasives Engineering, 2025, 45(3): 332-341. doi: 10.13394/j.cnki.jgszz.2023.0265

Citation:

WU Yanwei, LIU Yin, SUN Xingwei, YANG Heran, DONG Zhixu, ZHANG Weifeng. Numerical simulation of multi-principal elements high-entropy alloy milling based on minimal quantity lubrication[J]. Diamond & Abrasives Engineering, 2025, 45(3): 332-341. doi: 10.13394/j.cnki.jgszz.2023.0265

Citation:

WU Yanwei, LIU Yin, SUN Xingwei, YANG Heran, DONG Zhixu, ZHANG Weifeng. Numerical simulation of multi-principal elements high-entropy alloy milling based on minimal quantity lubrication[J]. Diamond & Abrasives Engineering, 2025, 45(3): 332-341. doi: 10.13394/j.cnki.jgszz.2023.0265

PDF( 3785 KB)

Numerical simulation of multi-principal elements high-entropy alloy milling based on minimal quantity lubrication

doi: 10.13394/j.cnki.jgszz.2023.0265

WU Yanwei^{1, 3},
LIU Yin^{1, 2
,},
SUN Xingwei^{1, 2},
YANG Heran^{1, 2},
DONG Zhixu^{1, 2},
ZHANG Weifeng^{1, 2}

1.
School of Mechanical Engineering, Shenyang University of Technology, Shenyang 110870, China
2.
Liaoning Province Key Laboratory of Complex Surface NC Manufacturing Technology, Shenyang 110870, China
3.
Jianglu Machinery Electronics Group Co., Ltd., China North Industries Group Co., Ltd., Xiangtan 411100, Hunan, China

More Information

Received Date: 2023-12-05
Accepted Date: 2024-08-08
Rev Recd Date: 2024-07-13

Abstract

Abstract

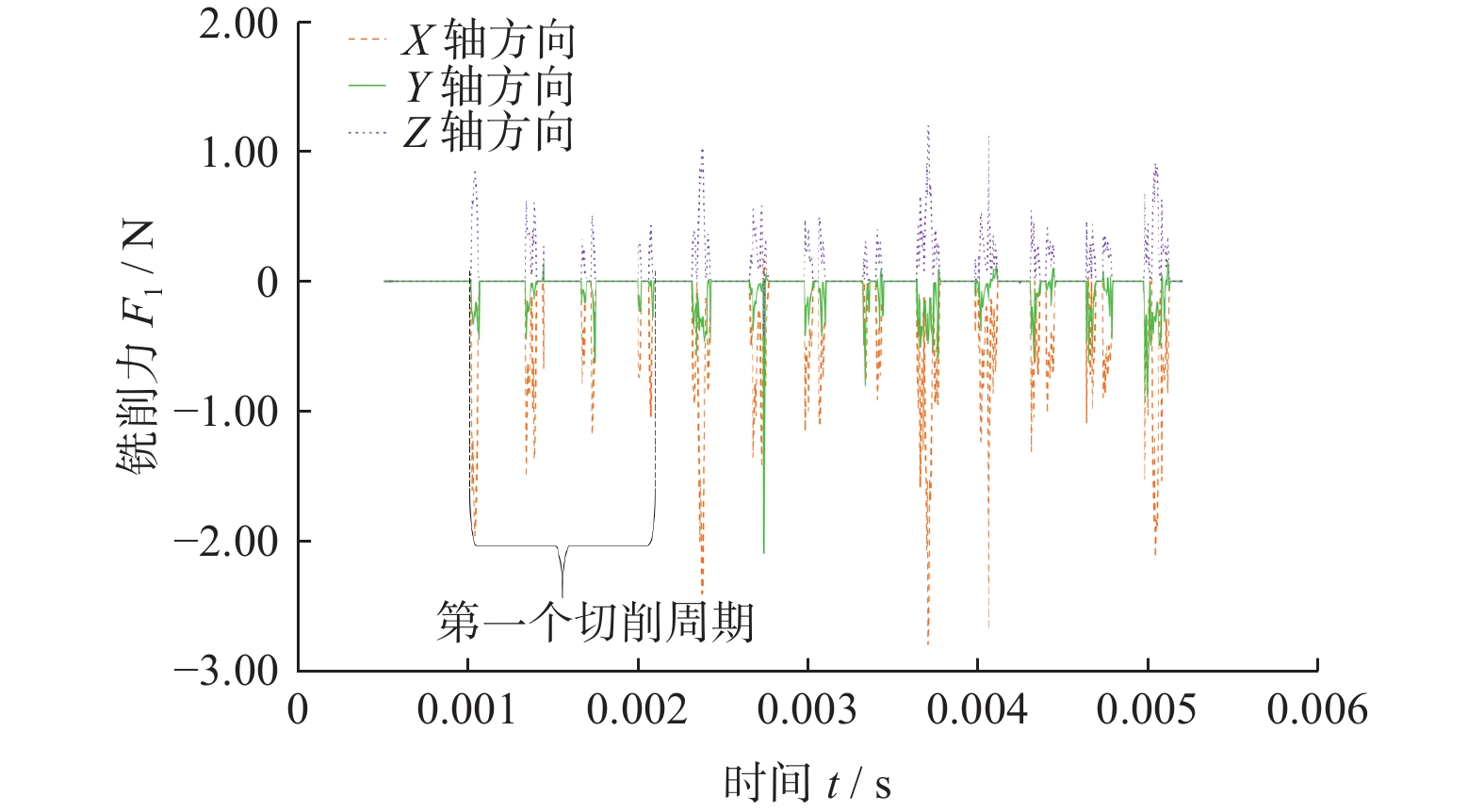

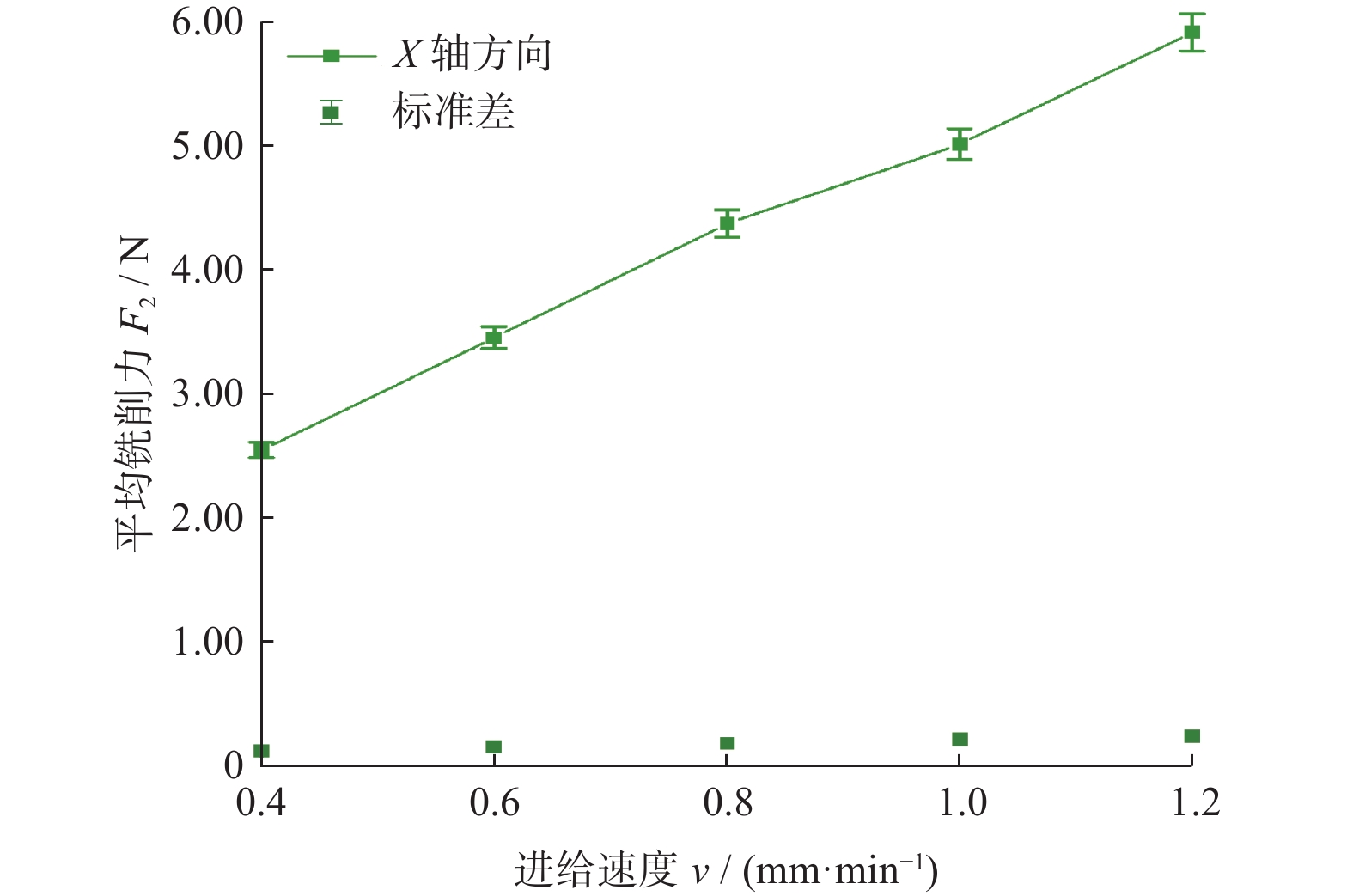

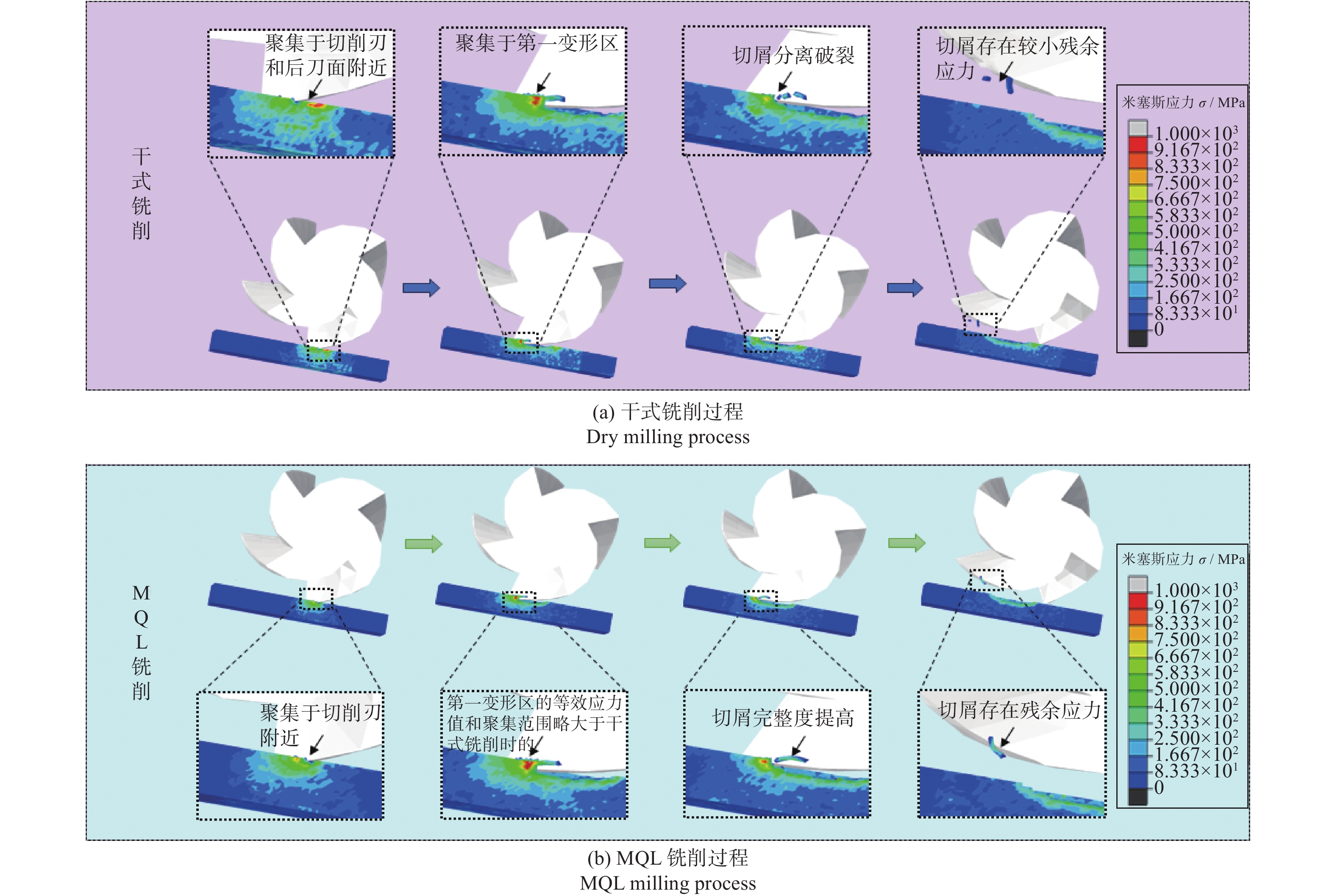

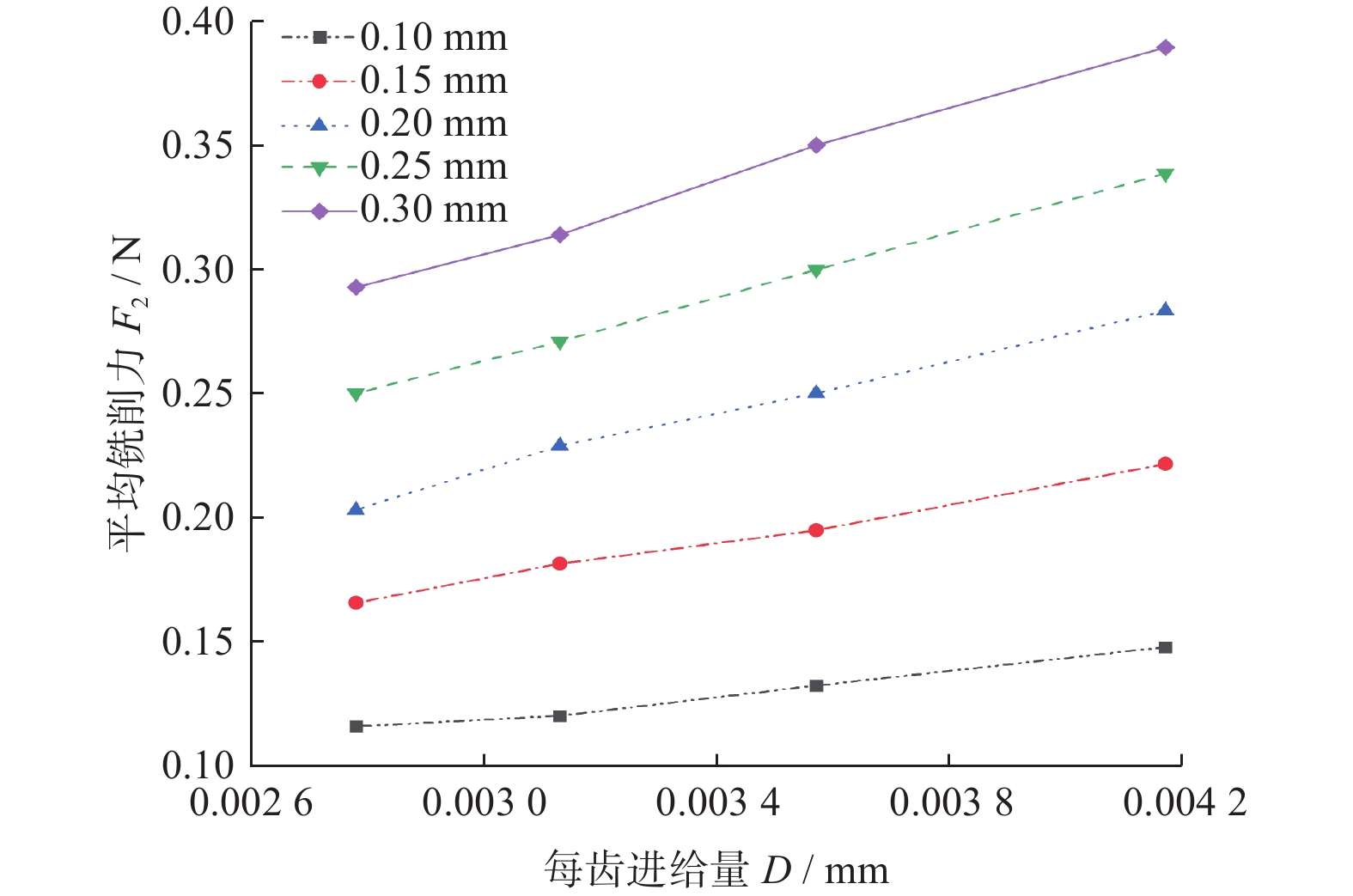

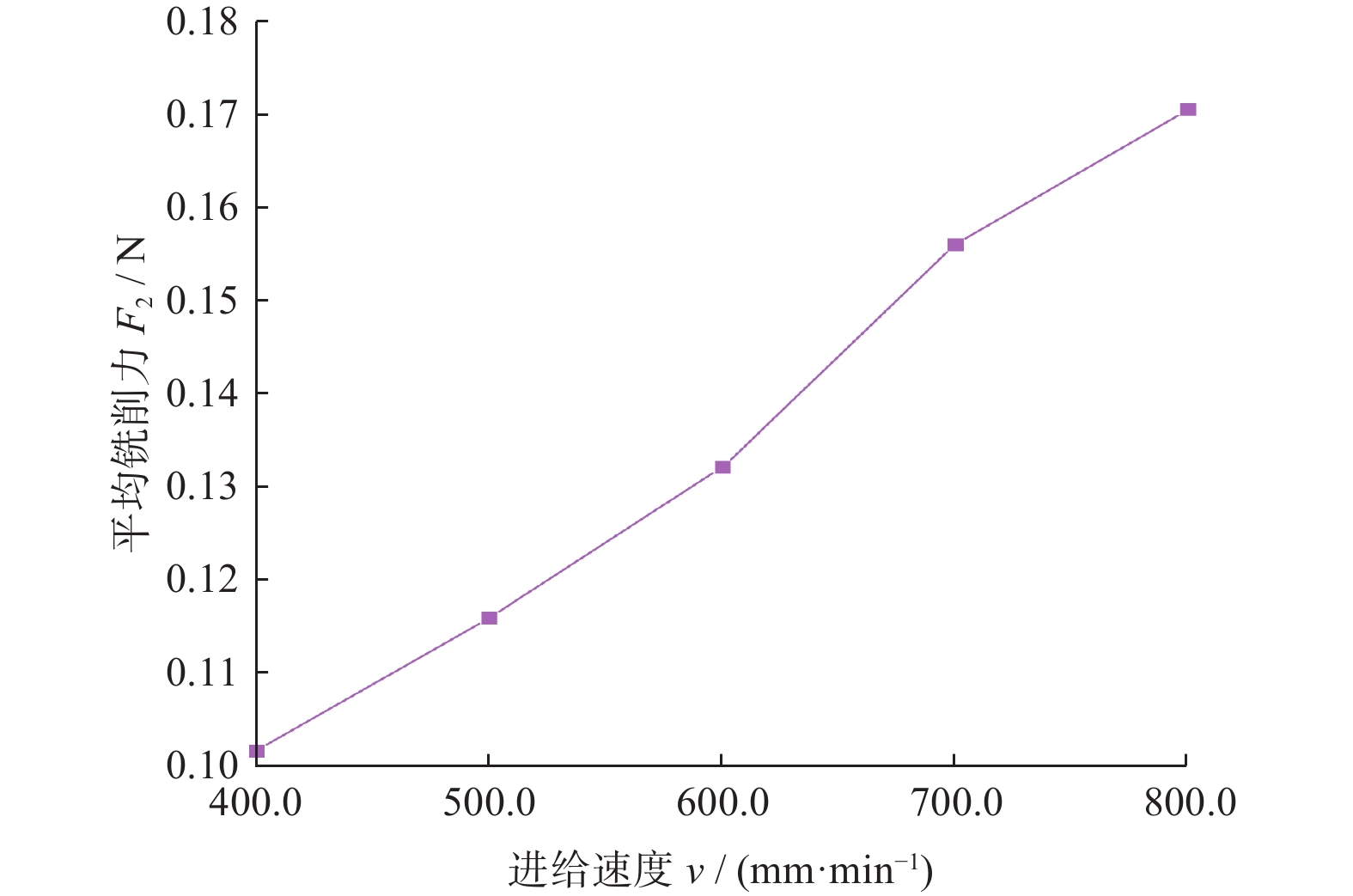

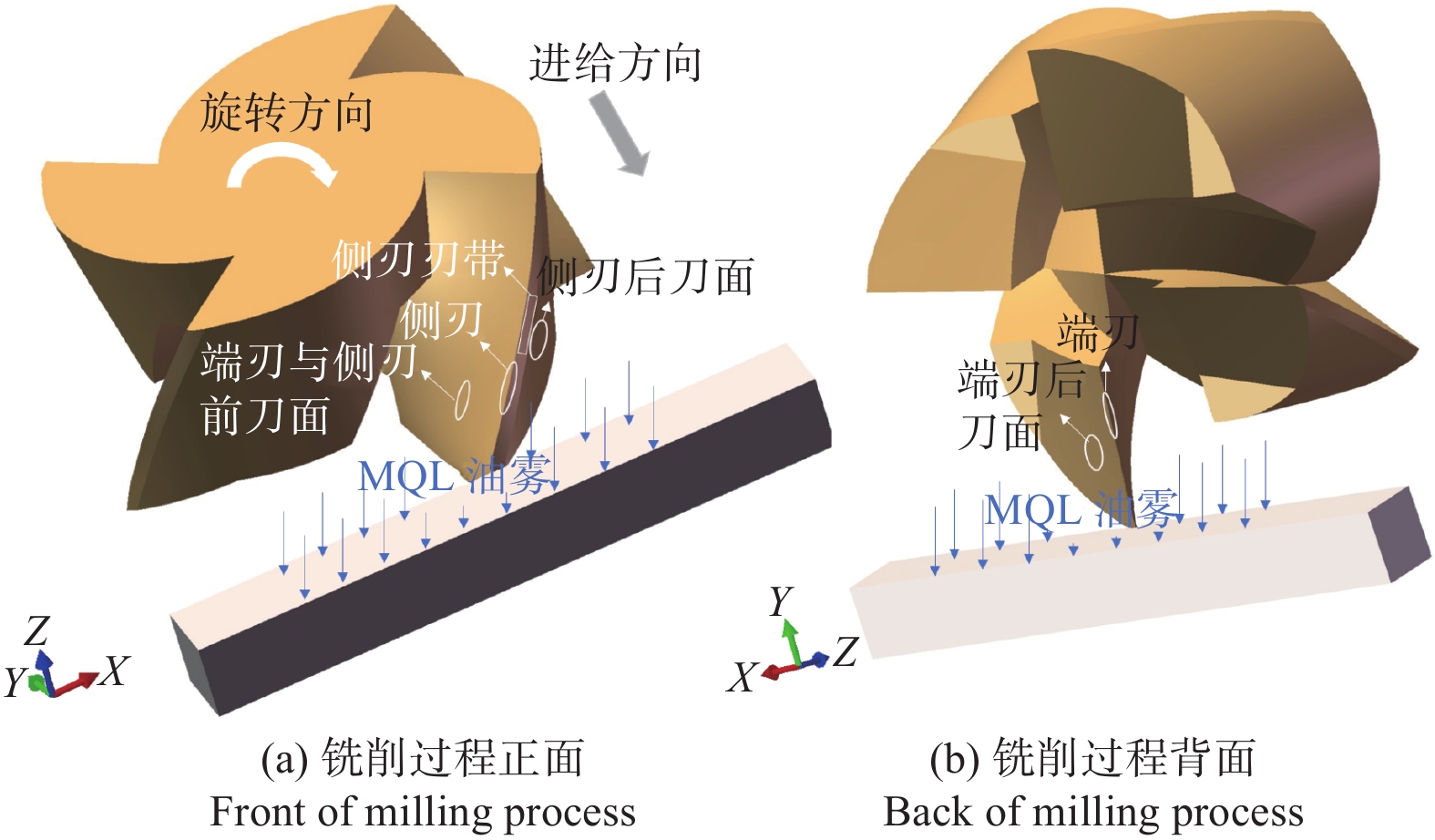

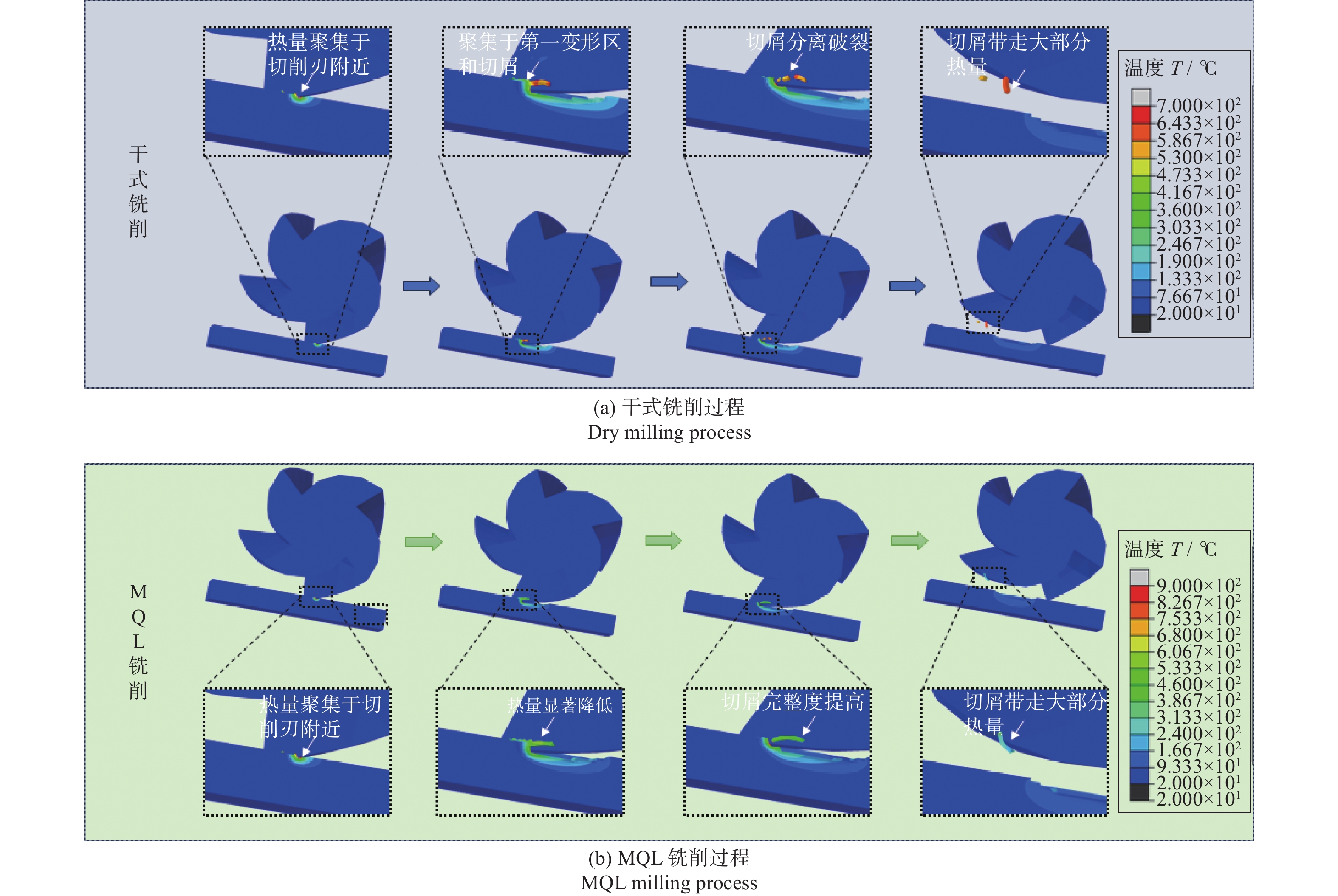

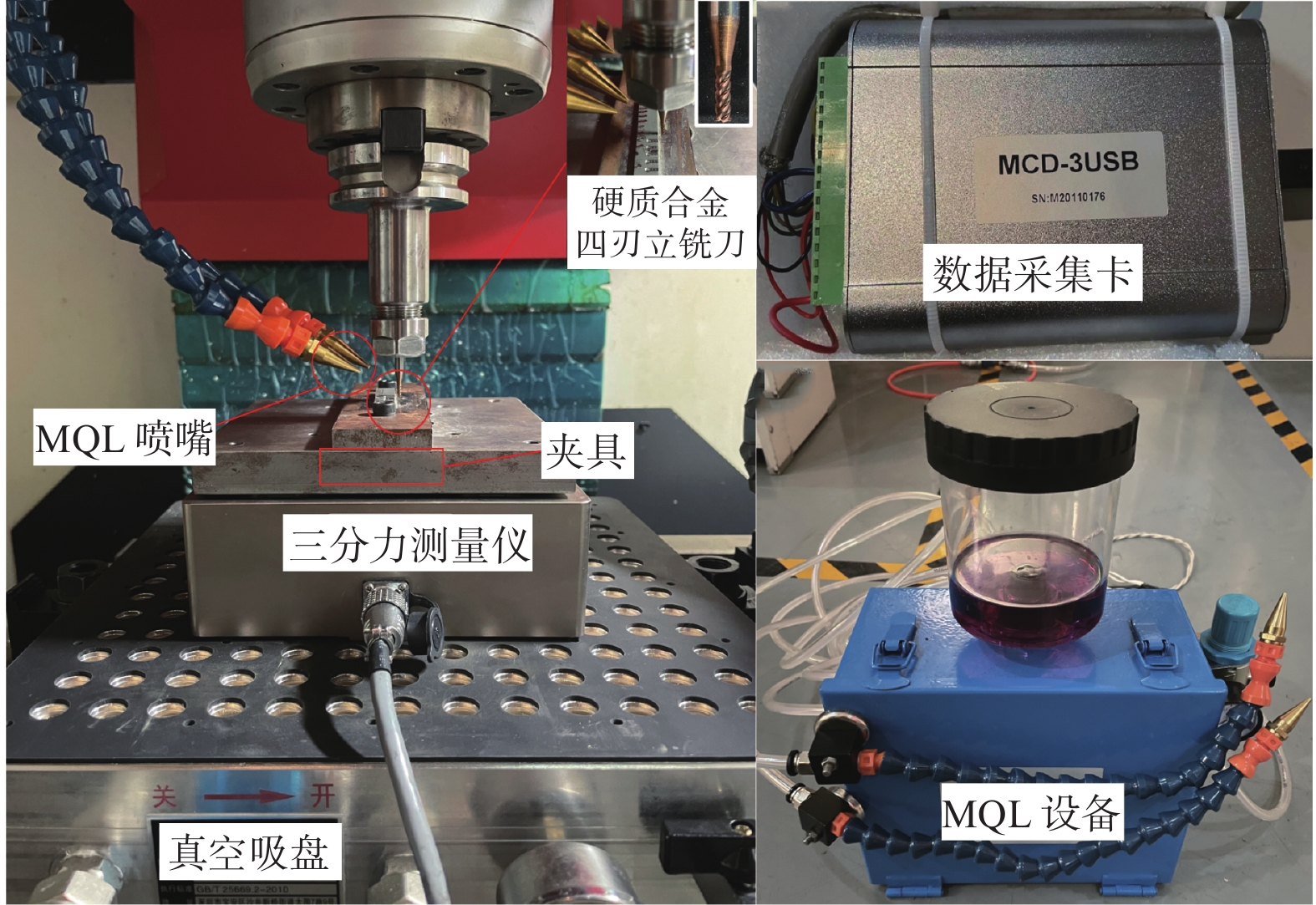

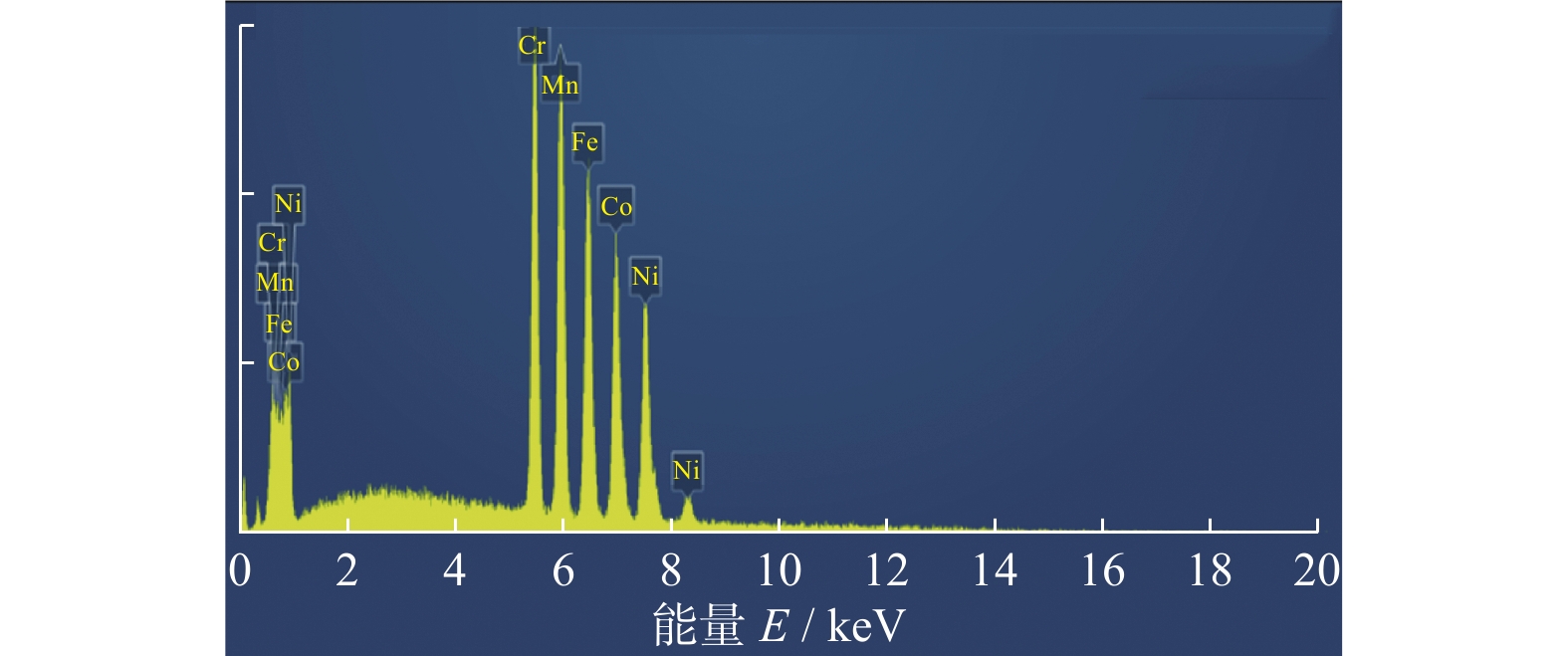

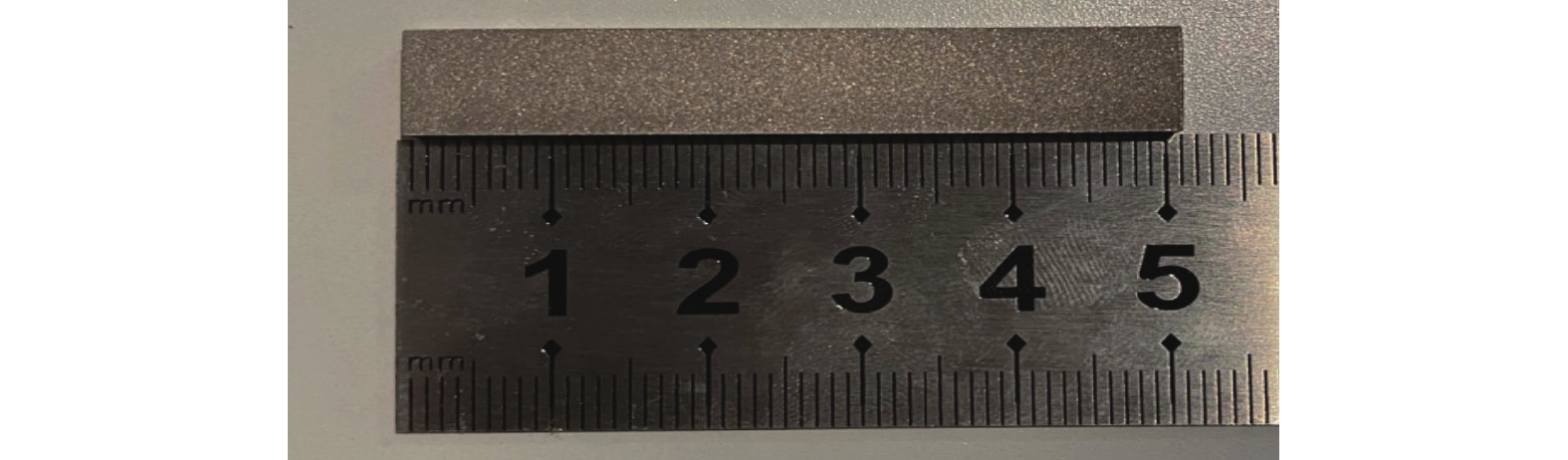

Objectives High-entropy alloys (HEA) with multi-principal elements have many excellent characteristics such as high strength, high hardness and high wear resistance, which have attracted widespread attention from scholars. However, the mechanical processing of HEA is difficult. This study utilizes minimal quantity lubrication (MQL) technology for milling HEA to improve their machining performance and explore the influences of different milling parameters on their milling force. Methods The thermodynamic coupling milling model of HEA (CoCrFeNiMn) and a four-edge end milling cutter is established using finite element simulation software. The difference in milling force between MQL milling and dry milling is studied by analyzing the material removal mechanism, and the influences of different milling parameters on milling forces are studied by single-factor experiments. Firstly, the three-dimensional model of the four-edge end milling cutter, the J-C constitutive model of HEA (CoCrFeNiMn), the heat conduction model and the contact friction model are established, and the material failure separation criteria are determined and the milling model is established. Then, the material removal mechanism under the thermodynamic coupling condition is analyzed, and the changes in milling forces between MQL milling and dry milling are analyzed from the perspectives of equivalent stress, contact friction and the thermal softening effect, and the advantages of MQL technology for milling HEA (CoCrFeNiMn) are analyzed. Finally, the effects of feed speed, spindle speed and milling depth on milling force are obtained by single-factor tests. Results Through comparative experiments between dry milling and MQL milling, it is found that: (1) The equivalent stress produced by the two milling methods are concentrated in the first deformation zone, and the equivalent stress of dry milling is also concentrated in the position near the cutting edge. (2) The equivalent stress value of MQL milling in the first deformation zone is slightly greater than that of dry milling. (3) The heat generated by the two milling methods is concentrated in the first deformation zone and the chips, and the chips take away most of the heat. The chip temperature generated by dry milling is significantly higher than that generated by MQL milling. (4) MQL milling significantly reduces the temperature at the cutting site and improves chip integrity. (5) When the milling depth is 0.15 to 0.20 mm, the milling force of MQL milling is basically the same as that of dry milling. When the milling depth is greater than 0.20 mm, the ability of MQL milling to reduce milling force increases with the increase of milling depth. This is due to the use of MQL technology in the milling process, which compensates for the reduced milling force caused by low friction coefficient and the increased milling force caused by weak thermal softening effect. The MQL milling single-factor tests show that: (1) The milling force increases with the increase of feed speed, and decreases with the increase of spindle speed, that is, it increases with the increase of feed rate per tooth. (2) The milling force increases with the increase of milling depths, and the effect of feed rate per tooth on the average milling force is gradually intensified with the increase of milling depth. Conclusions The MQL milling has obvious advantages, which can significantly reduce milling force at milling depth greater than 0.20 mm, and the ability to reduce milling force increases with the increase of milling depth. In addition, the use of MQL technology in the milling process can significantly reduce the temperature at the cutting position, improve HEA machining accuracy, and avoid a series of defects of traditional pouring lubrication. The cutting force in MQL milling conforms to the change law of cutting force in most metal milling with the process parameters. In MQL milling, the milling force can be further reduced by increasing the spindle speed and reducing the feed speed. When the milling depth is large, the spindle speed should be further increased and the feed speed should be reduced to reduce the feed per tooth, in order to deal with the high sensitivity of the milling force to the milling depth.
- high-entropy alloy (HEA),
- thermo-mechanical coupling,
- minimal quantity lubrication (MQL),
- material removal mechanism,
- milling force

FullText(HTML)

References(16)

References

[1]	梁秀兵, 魏敏, 程江波, 等. 高熵合金新材料的研究进展 [J]. 材料工程,2009, 37(12):75-79. doi: 10.3969/j.issn.1001-4381.2009.12.018 LIANG Xiubing, WEI Min, CHENG Jiangbo, et al. Research progress in advanced materials of high-entropy alloys [J]. Journal of Materials Engineering,2009, 37(12):75-79. doi: 10.3969/j.issn.1001-4381.2009.12.018
[2]	陈永星, 朱胜, 王晓明, 等. 高熵合金制备及研究进展 [J]. 材料工程,2017,45(11):129-138. doi: 10.11868/j.issn.1001-4381.2015.001124 CHEN Yongxing, ZHU Sheng, WANG Xiaoming, et al. Progress in preparation and research of high entropy alloys [J]. Journal of Materials Engineering,2017,45(11):129-138. doi: 10.11868/j.issn.1001-4381.2015.001124
[3]	DOAN D Q, FANG T H, CHEN T H. Machining mechanism and deformation behavior of high-entropy alloy under elliptical vibration cutting [J]. Intermetallics,2021,131(11):107079. doi: 10.1016/j.intermet.2020.107079
[4]	CONSTANTIN G, BALAN E, VOICULESCU I, et al. Cutting behavior of Al_0.6CoCrFeNi high entropy alloy [J]. Materials,2020,13(18):4181. doi: 10.3390/ma13184181
[5]	ZHANG L, HASHIMOTO T, YAN J W. Machinability exploration for high-entropy alloy FeCrCoMnNi by ultrasonic vibration-assisted diamond turning [J]. CIRP Annals,2021,70(5):37-40. doi: 10.1016/j.cirp.2021.04.090
[6]	袁松梅, 韩文亮, 朱光远, 等. 绿色切削微量润滑增效技术研究进展 [J]. 机械工程学报,2019,55(5):175-185. doi: 10.3901/JME.2019.05.175 YUAN Songmei, HAN Wenliang, ZHU Guangyuan, et al. Recent progress on the efficiency increasing methods of minimum quantity lubrication technology in green cutting [J]. Journal of Mechanical Engineering,2019,55(5):175-185. doi: 10.3901/JME.2019.05.175
[7]	袁松梅, 朱光远, 王莉. 绿色切削微量润滑技术润滑剂特性研究进展 [J]. 机械工程学报,2017,53(17):131-140. doi: 10.3901/JME.2017.17.131 YUAN Songmei, ZHU Guangyuan, WANG Li. Recent progress on lubricant characteristics of minimum quantity lubrication (MQL) technology in green cutting [J]. Journal of Mechanical Engineering,2017,53(17):131-140. doi: 10.3901/JME.2017.17.131
[8]	WANG Y G, LI C H, ZHANG Y B, et al. Experimental evaluation of the lubrication properties of the wheel/workpiece interface in minimum quantity lubrication (MQL) grinding using different types of vegetable oils [J]. Journal of Cleaner Production,2016,127:487-499. doi: 10.1016/j.jclepro.2016.03.121
[9]	SU Y, GONG L, LI B, et al. Performance evaluation of nanofluid MQL with vegetable-based oil and ester oil as base fluids in turning [J]. The International Journal of Advanced Manufacturing Technology,2016,83(9):2083-2089. doi: 10.1007/s00170-015-7730-x
[10]	WANG Y G, LI C H, ZHANG Y B, et al. Experimental evaluation of the lubrication properties of the wheel/workpiece interface in MQL grinding with different nanofluids [J]. Tribology International,2016,99:198-210. doi: 10.1016/j.triboint.2016.03.023
[11]	周琳, 王子豪, 文鹤鸣. 简论金属材料JC本构模型的精确性 [J]. 高压物理学报,2019,33(4):3-16. doi: 10.11858/gywlxb.20190721 ZHOU Lin, WANG Zihao, WEN Heming. On the accuracy of the Johnson-Cook constitutive model for metals [J]. Chinese Journal of High Pressure Physics,2019,33(4):3-16. doi: 10.11858/gywlxb.20190721
[12]	许海涛. 动态预压缩对CoCrFeNiMn高熵合金微尺度压入硬度的影响 [D]. 太原: 太原理工大学, 2021. XU Haitao. Effect of dynamic pre-compression micro-scale indentation hardness of CoCrFeNiMn high-entropy alloy [D]. Taiyuan: Taiyuan University of Technology, 2021.
[13]	尹晓珊, 钟建琳, 彭宝营, 等. Ti₂AlNb基合金切削力有限元仿真 [J]. 工具技术,2023,57(4):65-69. doi: 10.3969/j.issn.1000-7008.2023.04.012 YIN Xiaoshan, ZHONG Jianlin, PENG Baoying, et al. Finite element simulation of cutting force of Ti₂AlNb-based alloy [J]. Tool Engineering,2023,57(4):65-69. doi: 10.3969/j.issn.1000-7008.2023.04.012
[14]	ZHANG Y, HUANG X. Simulation and research of aerospace material milling based on ABAQUS [J]. Journal of Physics: Conference Series, 2020, 1653(1): 012070. doi: 10.1088/1742-6596/1653/1/012070
[15]	梁正一, 杨赫然, 刘寅, 等. 基于MQL的锆基块体金属玻璃钻削仿真研究 [J]. 工具技术,2023,57(7):90-96. doi: 10.3969/j.issn.1000-7008.2023.07.016 LIANG Zhengyi, YANG Heran, LIU Yin, et al. Simulation research on drilling of Zr-based bulk metal glass based on MQL [J]. Tool Engineering,2023,57(7):90-96. doi: 10.3969/j.issn.1000-7008.2023.07.016
[16]	奚欣欣, 陈涛, 丁文锋. TiAl合金低压涡轮叶片榫头磨削温度场研究 [J]. 金刚石与磨料磨具工程,2020,40(5):17-22. doi: 10.13394/j.cnki.jgszz.2020.5.0003 XI Xinxin, CHEN Tao, DING Wenfeng. Research on temperature field during grinding of low-pressure turbine blade tenon of TiAl alloys [J]. Diamond & Abrasives Engineering,2020,40(5):17-22. doi: 10.13394/j.cnki.jgszz.2020.5.0003
