Magnetic particle grinding and finishing test of mixed particle size abrasives

doi: 10.13394/j.cnki.jgszz.2024.0078

LIU Bingyang^{1, 2},
DING Yunlong^{1, 2
,},
SHAO Wenjie^{1, 2},
HAN Bing^{1, 2},
CHEN Yan^{1, 2}

1.
School of Mechanical Engineering and Automation, University of Science and Technology Liaoning, Anshan 114051, Liaoning, China
2.
Liaoning Key Laboratory of Special Machining for Complex Workpiece Surface, Anshan 114051, Liaoning, China

More Information

Received Date: 2024-04-25
Accepted Date: 2024-06-24
Rev Recd Date: 2024-06-07

Abstract

Abstract

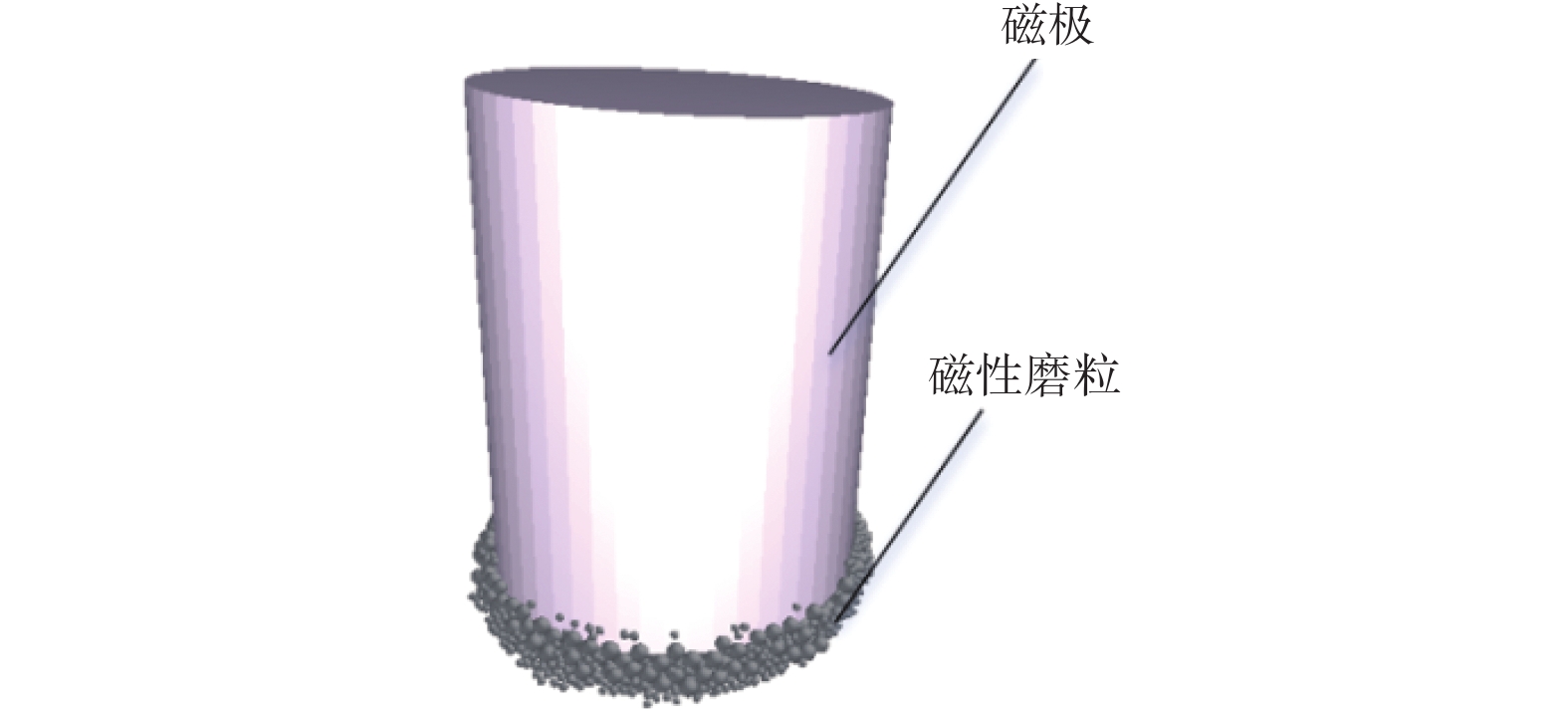

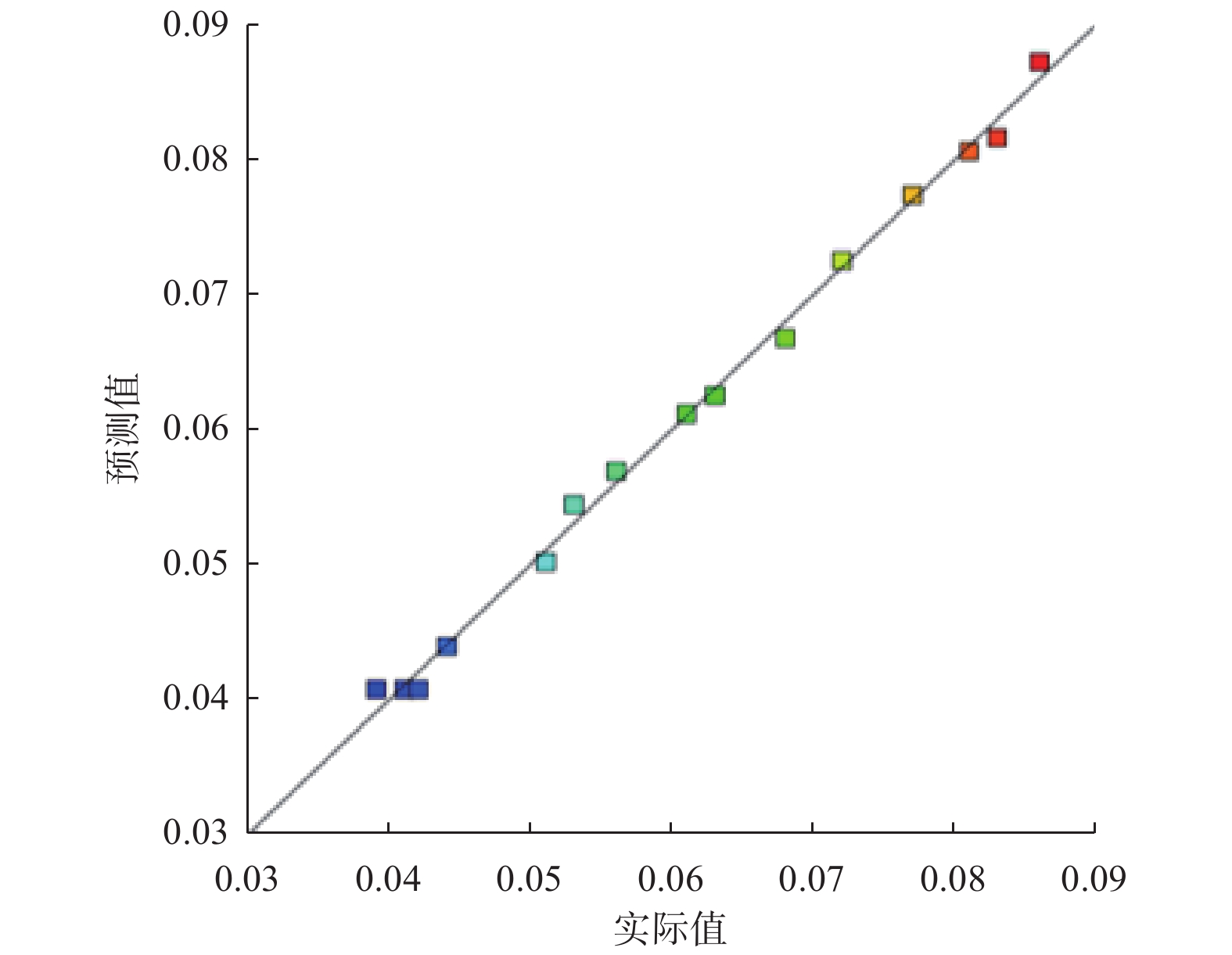

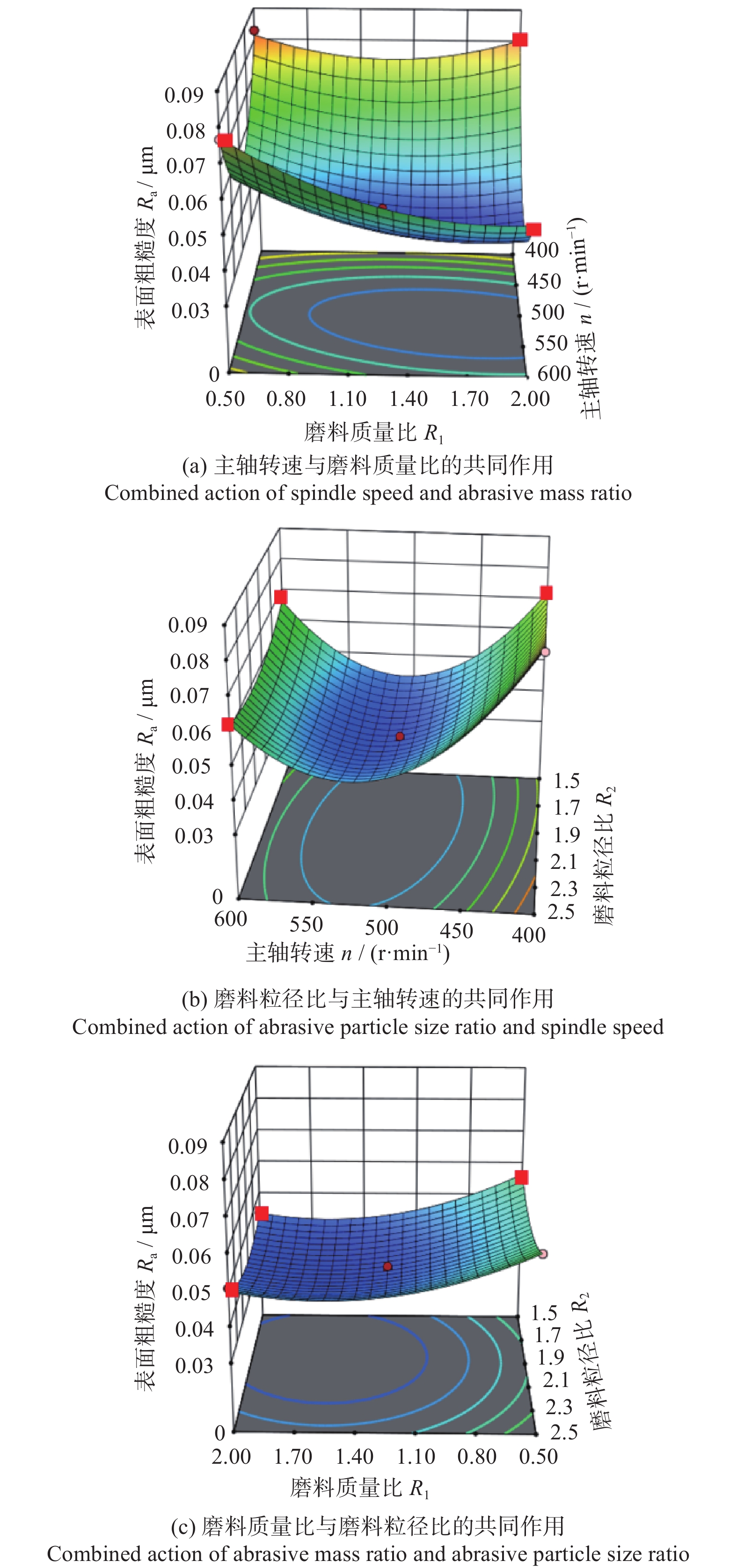

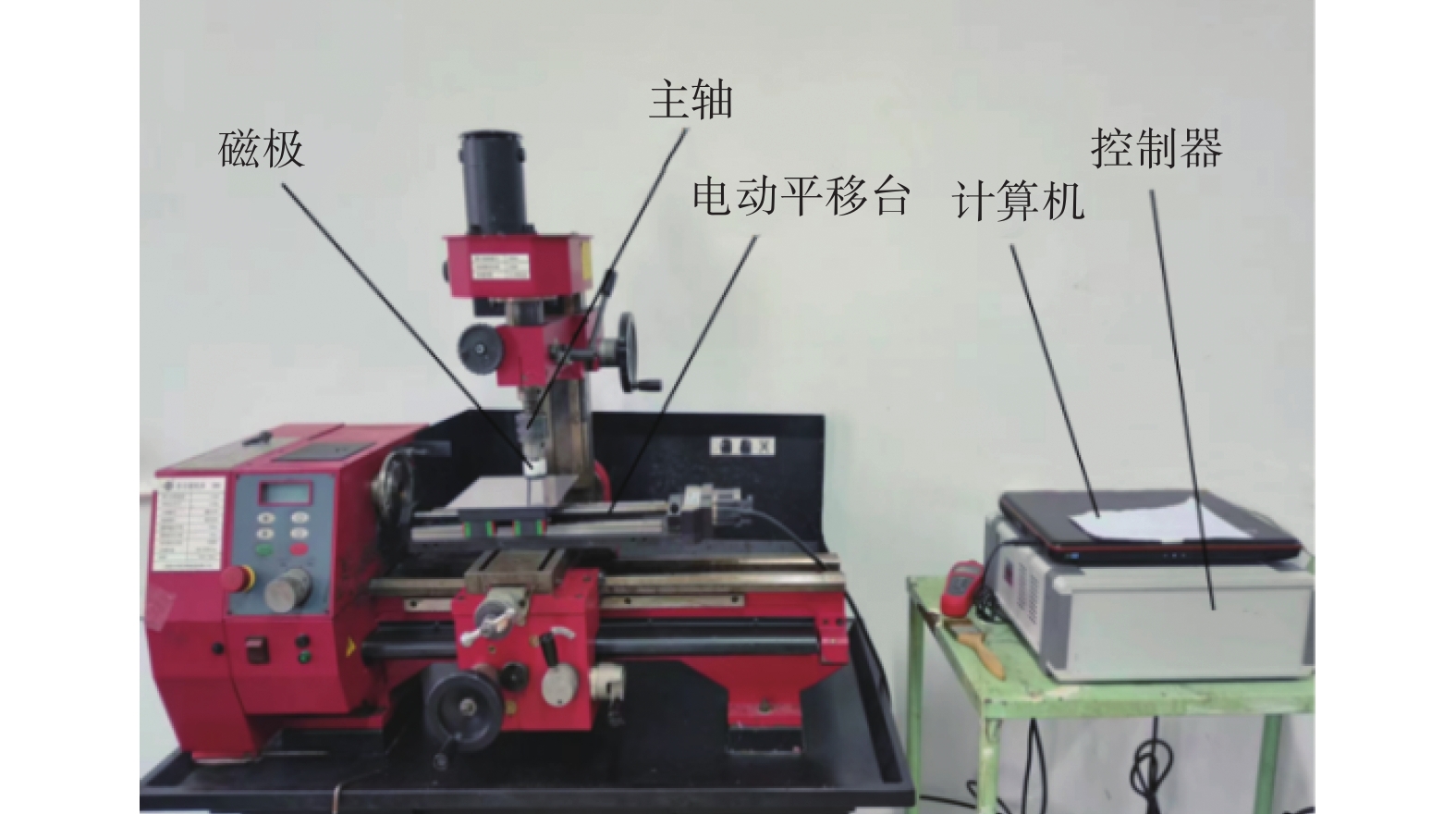

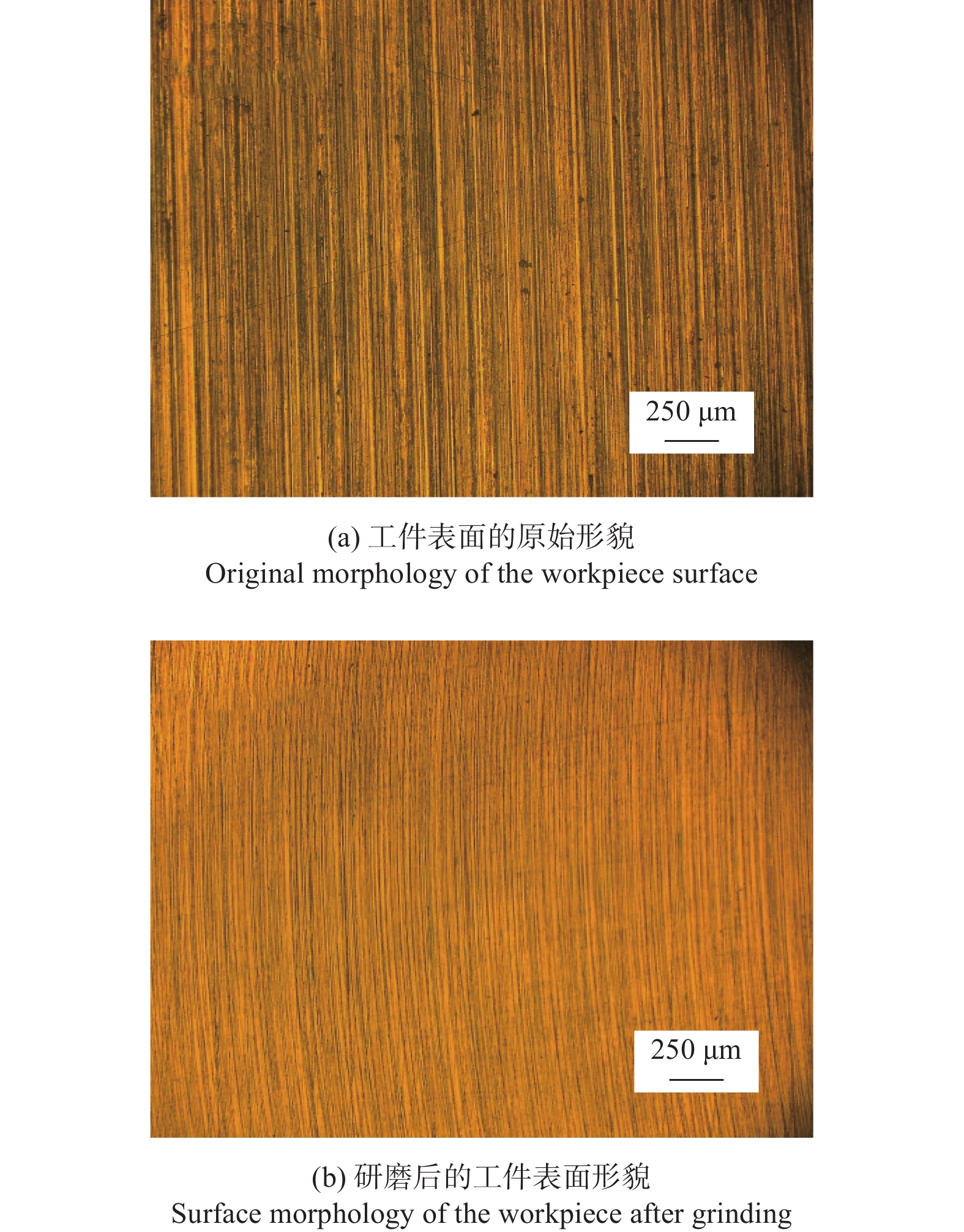

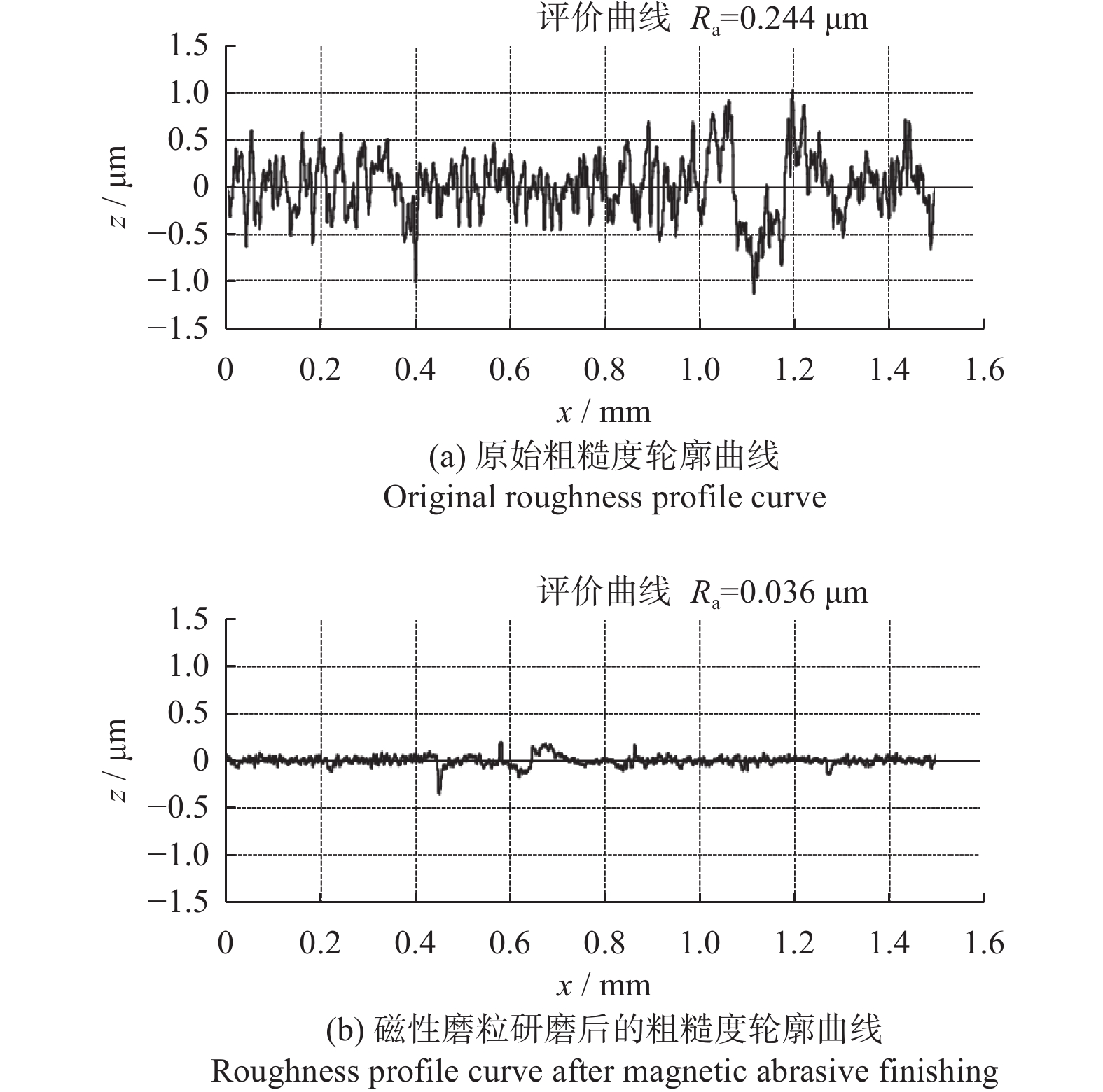

Objectives Magnetic particle grinding finishing technology as an advanced processing technology can achieve high precision surface treatment. In order to simplify the test device, reduce the test cost and improve the processing effect, the single particle size abrasive is changed to mixed particle size abrasive without changing the test device, so as to improve the grinding effect of magnetic particles. Methods Finite element analysis software is used to simulate the magnetic field in the machining area, and the magnetic field data is imported into the discrete element simulation software through an API interface to obtain the magnetic field during the simulation process, in order to simulate the force situation of mixed particle size abrasive and single particle size abrasive during machining. Taking the spindle speed of the machine tool (A), the abrasive mass ratio (B) and the abrasive particle size ratio (C) as the research objects, the experimental parameters are analyzed and optimized using response surface methodology. To prevent abrasive splashing and reduce the grinding effect, the selected experimental parameters ranges are 400 to 600 r/min for A, 0.50 to 2.00 for B, and 1.5 to 2.5 for C. Using the surface roughness R_a of the workpiece as the response value, the Box Behnken method is used for response surface test design. Results The P-value of the variance analysis of the model experiment results is less than 0.000 1, indicating that the experimental model is highly significant. The mismatch term refers to the unexplained error in the model, with a P-value of 0.458 1, much greater than 0.050 0, indicating that the mismatch term is not significant and the regression equation fitted by the software is valid. At the same time, the multiple correlation coefficient R² is 0.996 2, and R²_Adj is 0.989 4 after verification, which is very close to 1.000 0, indicating a good fit of the model. Moreover, the surface roughness is affected by the spindle speed, abrasive mass ratio and abrasive particle size ratio to 98.94%. The results of the single factor experiment indicate that the order of influence on surface roughness R_a is the spindle speed, followed by the abrasive mass ratio and the abrasive particle size ratio. When the spindle speed is 500 r/min and the abrasive mass ratio is 1.25, the workpiece surface roughness R_a reaches the minimum value. In the case of a certain abrasive mass ratio, when the abrasive particle size ratio is 2.0 and the spindle speed is 500 r/min, the workpiece surface roughness R_a reaches its minimum value. Under the condition of constant spindle speed, when the abrasive mass ratio is 0.50 and the abrasive particle size ratio is 2.5, the workpiece surface roughness R_a reaches the maximum. However, when the abrasive particle size ratio is 2.0 and the appropriate mass ratio is 1.25, the surface roughness R_a of the workpiece can reach the minimum value. Aiming at the minimum surface roughness R_a of the workpiece, the response surface software is used to optimize the data, and the optimal process parameter combination for workpiece processing is obtained, that is, the spindle speed is 511 r/min, the abrasive mass ratio is 1.67, the abrasive particle size ratio is 1.9, and the predicted surface roughness R_a value after processing is 0.038 µm. When the workpiece is machined under the optimal process parameters, the surface roughness R_a of the workpiece decreases from the original value of 0.244 μm to the test value of 0.036 μm, and the absolute value of relative error between the two is 5.26%. Conclusions The experimental results show that the established model is effective, and the process parameters that affect the surface roughness R_a of the workpiece are in the order of spindle speed, followed by abrasive mass ratio and abrasive particle size ratio. Compared to single-abrasive magnetic particle grinding, the use of mixed abrasives can further reduce the surface roughness of the workpiece and improve its machining effect.
- magnetic particle grinding,
- mixed particle size abrasive,
- response surface method,
- abrasive particle size ratio,
- surface roughness

FullText(HTML)

References(21)

References

[1]	刘文浩, 陈燕, 李文龙, 等. 磁粒研磨加工技术的研究进展 [J]. 表面技术,2021,50(1):47-61. doi: 10.16490/j.cnki.issn.1001-3660.2021.01.004 LIU Wenhao, CHEN Yan, LI Wenlong, et al. Research progress of magnetic abrasive finishing technology [J]. Surface Technology,2021,50(1):47-61. doi: 10.16490/j.cnki.issn.1001-3660.2021.01.004
[2]	AHMAD S, SINGARI R, MISHRA R. Development of Al₂O₃-SiO₂ based magnetic abrasive by sintering method and its performance on Ti-6Al-4V during magnetic abrasive finishing [J]. Transactions of the IMF,2021(99):94-101. doi: 10.1080/00202967.2021.1865644
[3]	张亚军, 赵春光, 党恒耀, 等. 列车制动系统杠杆螺栓用17Cr₁₆Ni₂不锈钢的应力腐蚀敏感性 [J]. 中国铁道科学,2022,43(1):126-133. doi: 10.3969/j.issn.1001-4632.2022.01.15 ZHANG Yajun, ZHAO Chunguang, DANG Hengyao, et al. Stress corrosion susceptibility of 17Cr₁₆Ni₂ stainless steel for lever bolt of train brake system [J]. China Railway Science,2022,43(1):126-133. doi: 10.3969/j.issn.1001-4632.2022.01.15
[4]	张东阳. 基于低频交变磁场对管件内表面精密磁粒研磨工艺研究 [D]. 鞍山: 辽宁科技大学, 2022. ZHANG Dongyang. Research on precision magnetic particle grinding process for inner surface of pipe fittings based on low frequency alternating magnetic field [D]. Anshan: University of Science and Technology Liaoning, 2022.
[5]	XIE H J, ZOU Y H. Study on the magnetic abrasive finishing process using alternating magnetic field—discussion on the influence of current waveform variation [J]. The International Journal of Advanced Manufacturing Technology,2021,114(7):2471-2483. doi: 10.1007/s00170-021-07048-9
[6]	刘宁, 张桂香, 陈昊鑫, 等. 基于响应曲面法的磁力研磨310S不锈钢参数优化 [J]. 电镀与精饰,2023,45(6):77-83. doi: 10.3969/j.issn.1001-3849.2023.06.013 LIU Ning, ZHANG Guixiang, CHEN Haoxin, et al. Parameter optimization of magnetic abrasive finishing 310S stainless steel based on response surface methodology [J]. Plating & Finishing,2023,45(6):77-83. doi: 10.3969/j.issn.1001-3849.2023.06.013
[7]	刘新龙, 陈燕, 王杰, 等. 电解-旋转超声复合磁力研磨去除TC4钛合金孔边毛刺 [J]. 电镀与涂饰,2019,38(13):680-684. doi: 10.19289/j.1004-227x.2019.13.009 LIU Xinlong, CHEN Yan, WANG Jie, et al. Deburring of TC4 titanium alloy hole edge by magnetic grinding in combination with electrolysis and rotational ultrasonic vibration [J]. Electroplating & Finishing,2019,38(13):680-684. doi: 10.19289/j.1004-227x.2019.13.009
[8]	任泽, 朱永伟, 董彦辉, 等. 弹性磁极磨头磁力研磨TC4钛合金的工艺优化 [J]. 金刚石与磨料磨具工程,2023,43(2):257-264. doi: 10.13394/j.cnki.jgszz.2022.0101 REN Ze, ZHU Yongwei, DONG Yanhui, et al. Process optimization of magnetic abrasive finishing of TC4 titanium alloy with elastic magnetic pole grinding head [J]. Diamond & Abrasive Engineering,2023,43(2):257-264. doi: 10.13394/j.cnki.jgszz.2022.0101
[9]	马付建, 栾诗宇, 罗奇超, 等. 超声辅助磁性磨料光整加工工艺对钛合金表面完整性的影响 [J]. 中国表面工程,2019,32(2):128-136. doi: 10.11933/j.issn.1007-9289.20181105001 MA Fujian, LUAN Shiyu, LUO Qichao, et al. Effects of ultrasonic assisted magnetic abrasive finishing on surface integrity of titanium alloy [J]. China Surface Engineering,2019,32(2):128-136. doi: 10.11933/j.issn.1007-9289.20181105001
[10]	PANDEY K, PANDEY P M. An integrated application of chemo-ultrasonic approach for improving surface finish of Si (100) using double disk magnetic abrasive finishing [J]. The International Journal of Advanced Manufacturing Technology,2019,103(9):3871-3886. doi: 10.1007/s00170-019-03829-5
[11]	陈晓明, 徐成宇, 季冬锋, 等. 基于混合粒径的TC4钛合金低粗糙度磁力研磨研究 [J]. 表面技术,2023,52(12):112-118,159. doi: 10.16490/j.cnki.issn.1001-3660.2023.12.010 CHEN Xiaoming, XU Chengyu, JI Dongfeng, et al. Research on low roughness magnetic grinding of TC4 titanium alloy based on mixed particle size [J]. Surface Technology,2023,52(12):112-118,159. doi: 10.16490/j.cnki.issn.1001-3660.2023.12.010
[12]	郭峰, 王胜利, 王辰伟, 等. 不同粒径SiO₂磨料混合对钴化学机械抛光的影响 [J]. 电镀与涂饰,2022,41(23):1695-1700. doi: 10.19289/j.1004-227x.2022.23.009 GUO Feng, WANG Shengli, WANG Chenwei, et al. The effect of SiO₂ abrasive mixture with different particle sizes on cobalt chemical mechanical polishing [J]. Plating & Finishing,2022,41(23):1695-1700. doi: 10.19289/j.1004-227x.2022.23.009
[13]	程海东. 管件内表面磁粒研磨中磨粒动力学仿真研究 [D]. 鞍山: 辽宁科技大学, 2022. CHENG Haidong. Simulation study of abrasive particle dynamics in magnetic abrasive finishing of inner surface of piped [D]. Anshan: University of Science and Technology Liaoning, 2022.
[14]	肖阳, 孙友松, 陈光忠. 永磁场磁力研磨TC11钛合金的实验研究 [J]. 表面技术,2017,46(2):229-234. doi: 10.16490/j.cnki.issn.1001-3660.2017.02.039 XIAO Yang, SUN Yousong, CHEN Guangzhong. Experimental study of magnetic abrasive finishing of TC11 titanium alloy in permanent magnetic field [J]. Surface Technology,2017,46(2):229-234. doi: 10.16490/j.cnki.issn.1001-3660.2017.02.039
[15]	张志鹏, 陈燕, 潘明诗, 等. 基于Hilbert曲线磁粒研磨轨迹均匀性实验研究 [J]. 表面技术,2022,51(8):408-417. doi: 10.16490/j.cnki.issn.1001-3660.2022.08.037 ZHANG Zhipeng, CHEN Yan, PAN Mingshi, et al. Experimental study on magnetic particle grinding uniformity based on Hilbert curve [J]. Surface Technology,2022,51(8):408-417. doi: 10.16490/j.cnki.issn.1001-3660.2022.08.037
[16]	陈士军, 龚木联, 刘溯逸, 等. 基于响应曲面法的三元地聚合物注浆材料耐久性能研究 [J]. 硅酸盐通报,2024,43(3):938-947. doi: 10.16552/j.cnki.issn1001-1625.2024.03.006 CHEN Shijun, GONG Mulian, LIU Suyi, et al. Research on durability performance of ternary geopolymer grouting materials based on response surface methodology [J]. Bulletin of the Chinese Ceramic Society,2024,43(3):938-947. doi: 10.16552/j.cnki.issn1001-1625.2024.03.006
[17]	王鹏川, 金洙吉. 铁基金刚石磁性磨料的制备及其性能研究 [J]. 表面技术,2016(45):78-83. doi: 10.16490/j.cnki.issn.1001-3660.2016.12.013 WANG Pengchuan, JIN Zhuji. Preparation and performance of ironbas-ed diamond magnetic abrasive [J]. Surface Technology,2016(45):78-83. doi: 10.16490/j.cnki.issn.1001-3660.2016.12.013
[18]	张世学, 丁云龙, 吕旖旎, 等. 烧结法制备铁基立方氮化硼磁性磨粒及其磨削性能研究 [J]. 表面技术,2022,51(9):271-279. doi: 10.16490/j.cnki.issn.1001-3660.2022.09.000 ZHANG Shixue, DING Yunlong, LV Yini, et al. Preparation of iron-based cubic boron nitride magnetic abrasive particles by sintering method and study on their grinding performance [J]. Surface Technology,2022,51(9):271-279. doi: 10.16490/j.cnki.issn.1001-3660.2022.09.000
[19]	LI Z H, ZHAO Y G, LIU G X, et al. Parametric studies on finishing of AZ31B magnesium alloy with Al₂O₃ magnetic abrasives prepared by combining plasma molten metal powder with sprayed abrasive powder [J]. Micromachines,2022,13(9):1369. doi: 10.3390/mi13091369
[20]	梁伟, 张桂香, 张鹏, 等. 磁力研磨光整加工ZrO₂陶瓷材料试验研究 [J]. 表面技术,2018,47(9):310-316. doi: 10.16490/j.cnki.issn.1001-3660.2018.09.041 LIANG Wei, ZHANG Guixiang, ZHANG Peng, et al. Experimental study on magnetic abrasive finishing and polishing of ZrO₂ ceramic materials [J]. Surface Technology,2018,47(9):310-316. doi: 10.16490/j.cnki.issn.1001-3660.2018.09.041
[21]	杨欢, 陈松, 张磊, 等. 脉冲电磁场辅助平面磁粒研磨加工试验 [J]. 表面技术,2022,51(2):313-321. doi: 10.16490/j.cnki.issn.1001-3660.2022.02.031 YANG Huan, CHEN Song, ZHANG Lei, et al. Experimental study on pulse electromagnetic field assisted planar magnetic abrasive finishing [J]. Surface Technology,2022,51(2):313-321. doi: 10.16490/j.cnki.issn.1001-3660.2022.02.031
