CHEN Xiaodong, WANG Dexiang, GUO Feng, LI Xinming, JIANG Jingliang. Modelling of circumferential surface topography of grinding wheel with random distribution of circular truncated cone abrasive grains[J]. Diamond & Abrasives Engineering, 2025, 45(3): 408-415. doi: 10.13394/j.cnki.jgszz.2024.0086
Citation: CHEN Xiaodong, WANG Dexiang, GUO Feng, LI Xinming, JIANG Jingliang. Modelling of circumferential surface topography of grinding wheel with random distribution of circular truncated cone abrasive grains[J]. Diamond & Abrasives Engineering, 2025, 45(3): 408-415. doi: 10.13394/j.cnki.jgszz.2024.0086
shu

Modelling of circumferential surface topography of grinding wheel with random distribution of circular truncated cone abrasive grains

doi: 10.13394/j.cnki.jgszz.2024.0086
  • 1.

    College of Mechanical and Automotive Engineering of Qingdao University of Technology, Qingdao 266520, Shandong, China

  • 2.

    Shandong Zhilian Community Bearing Technology Co., Ltd., Liaocheng 252664, Shandong, China

More Information
  • Received Date: 2024-05-14
  • Accepted Date: 2024-08-02
  • Rev Recd Date: 2024-07-18
    Abstract

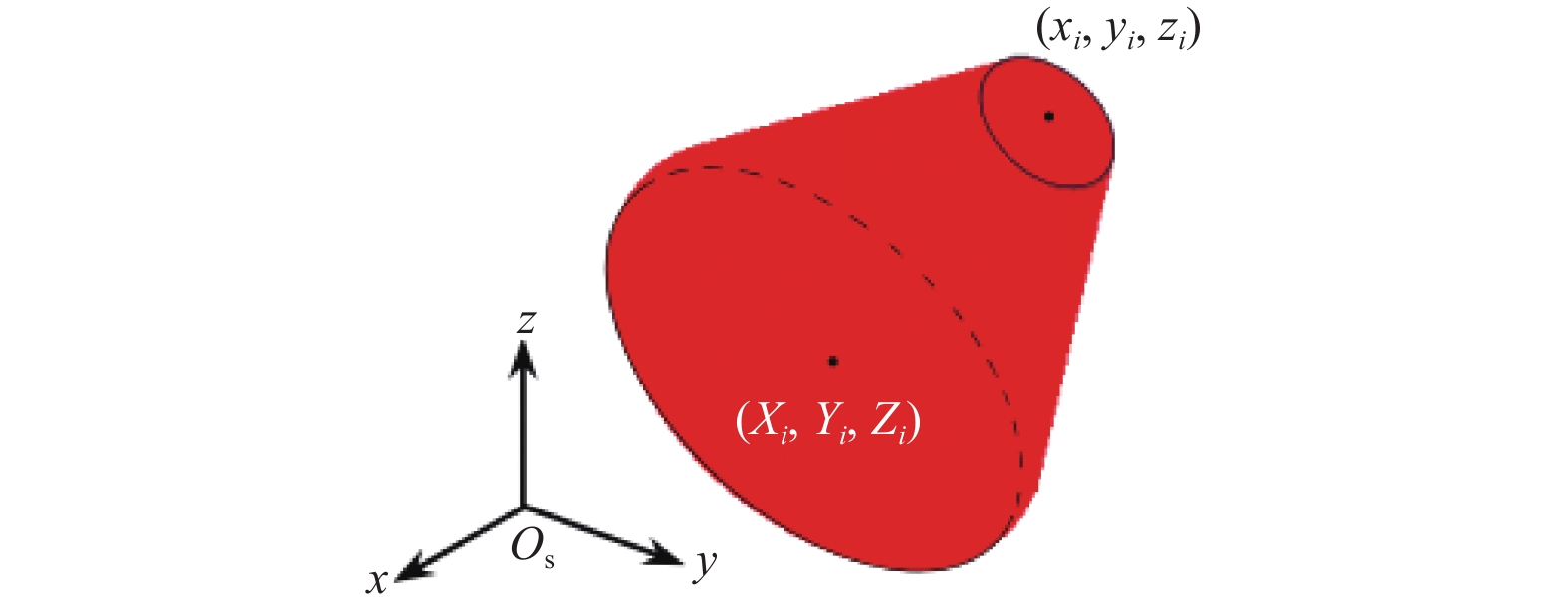

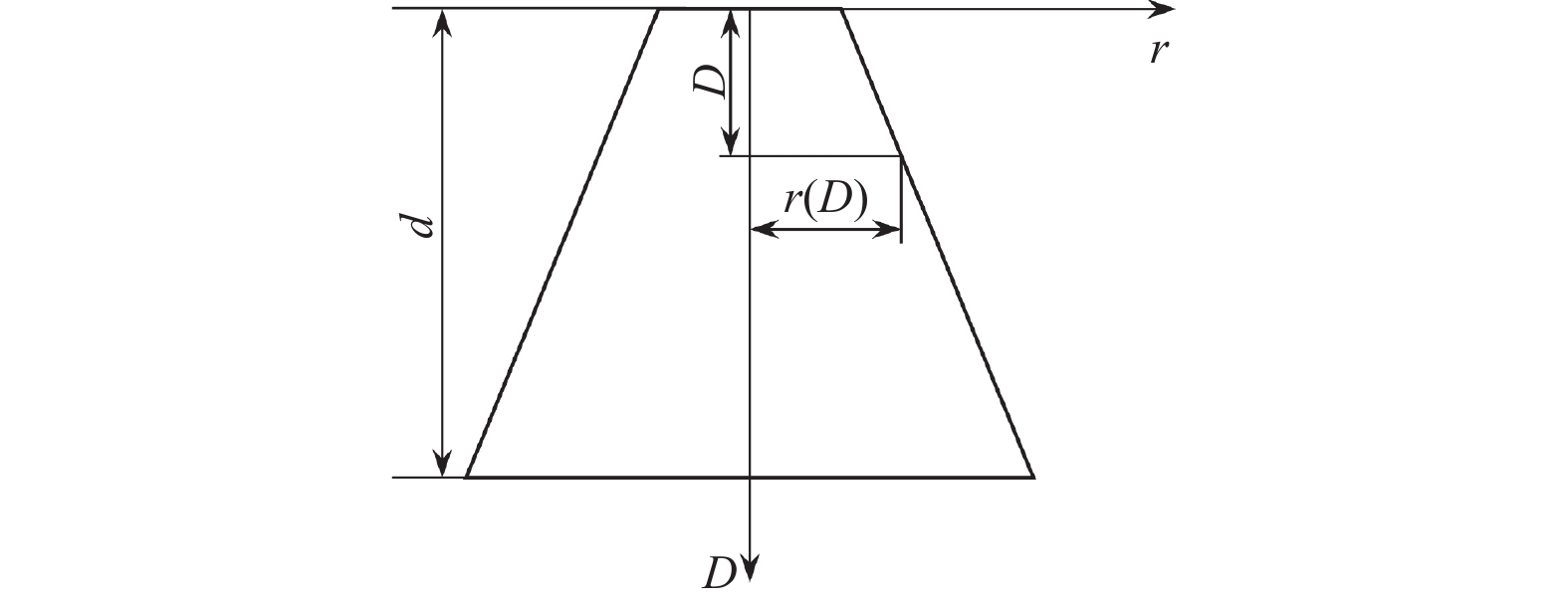

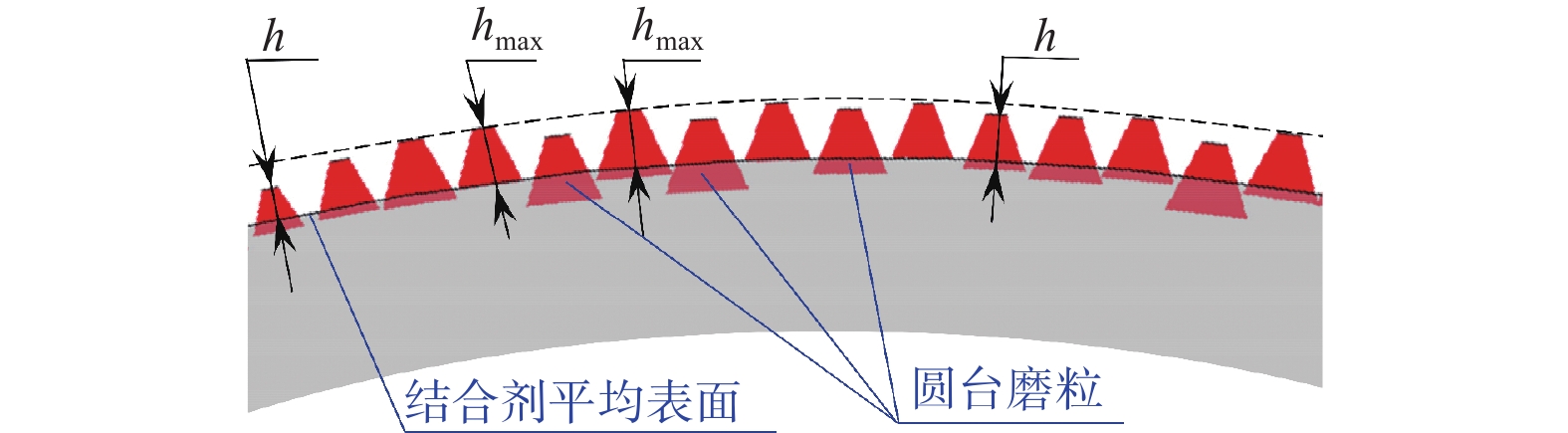

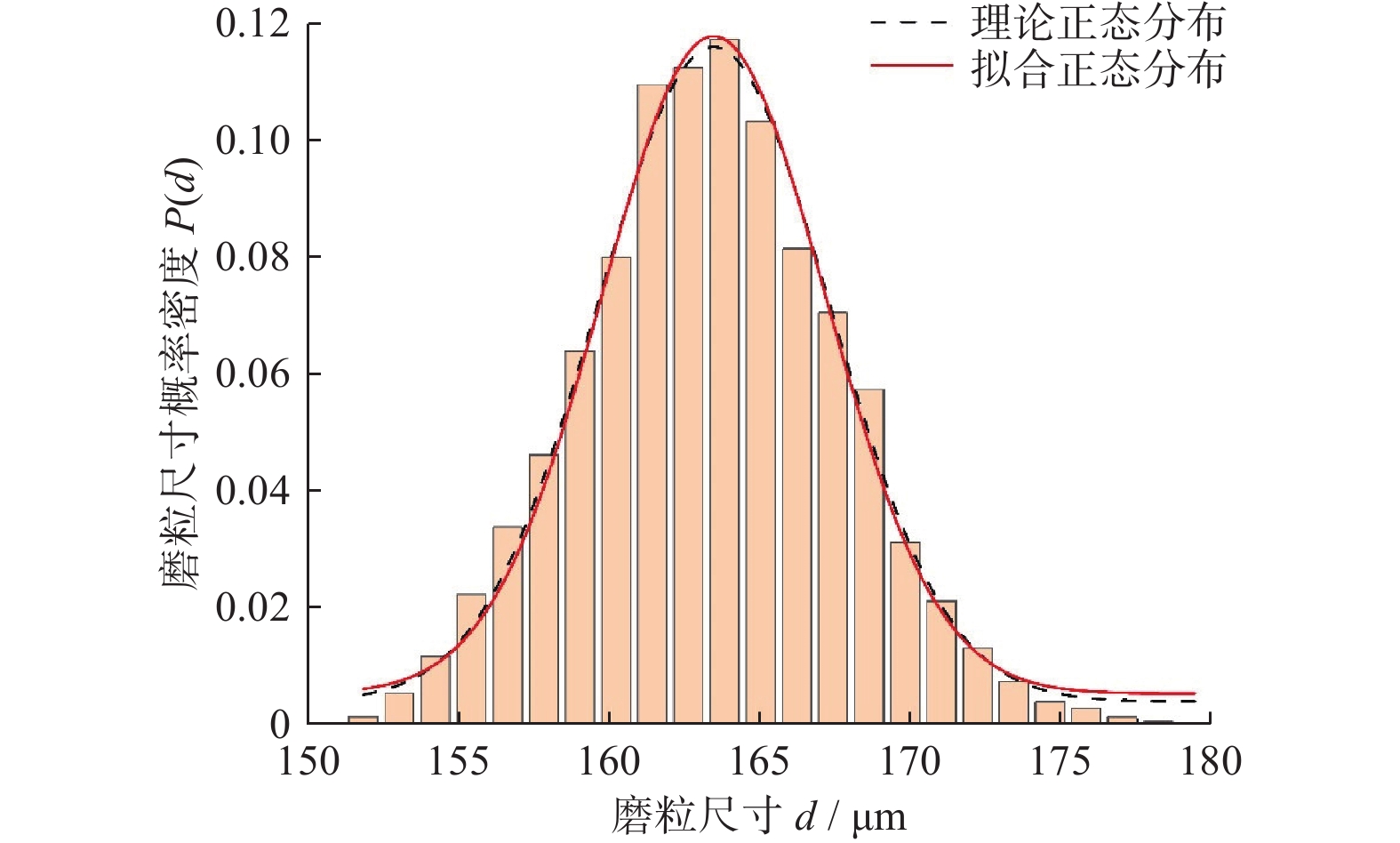

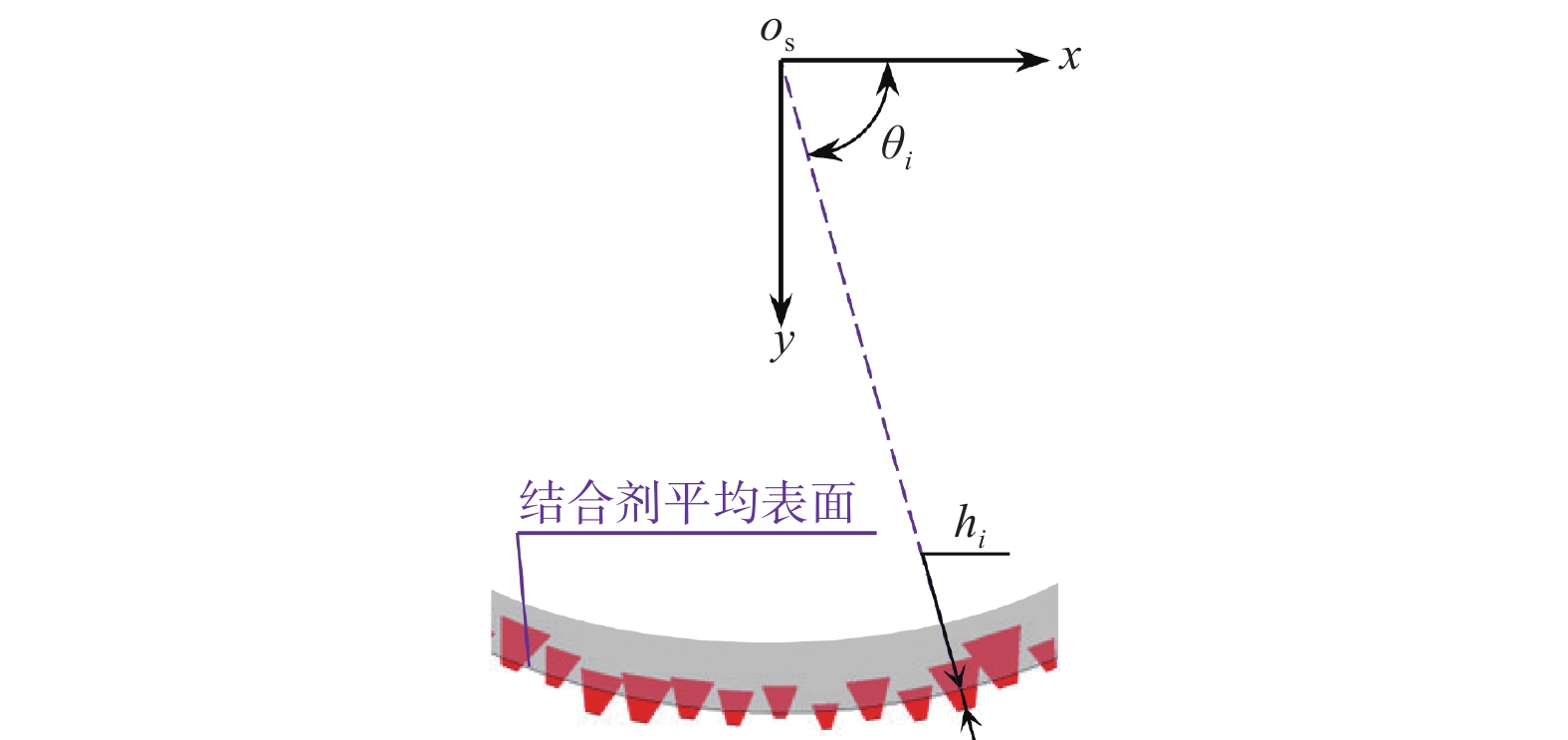

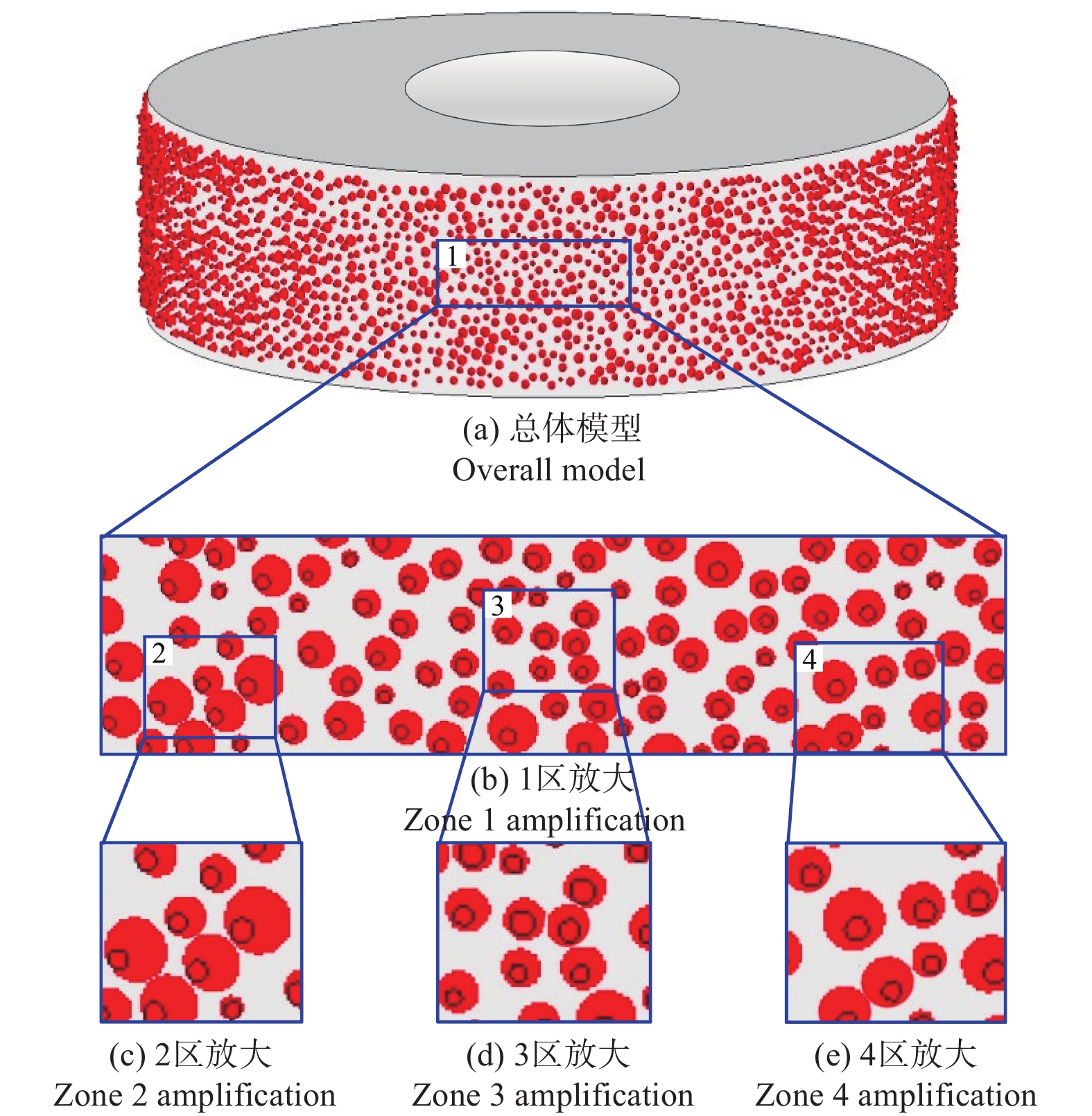

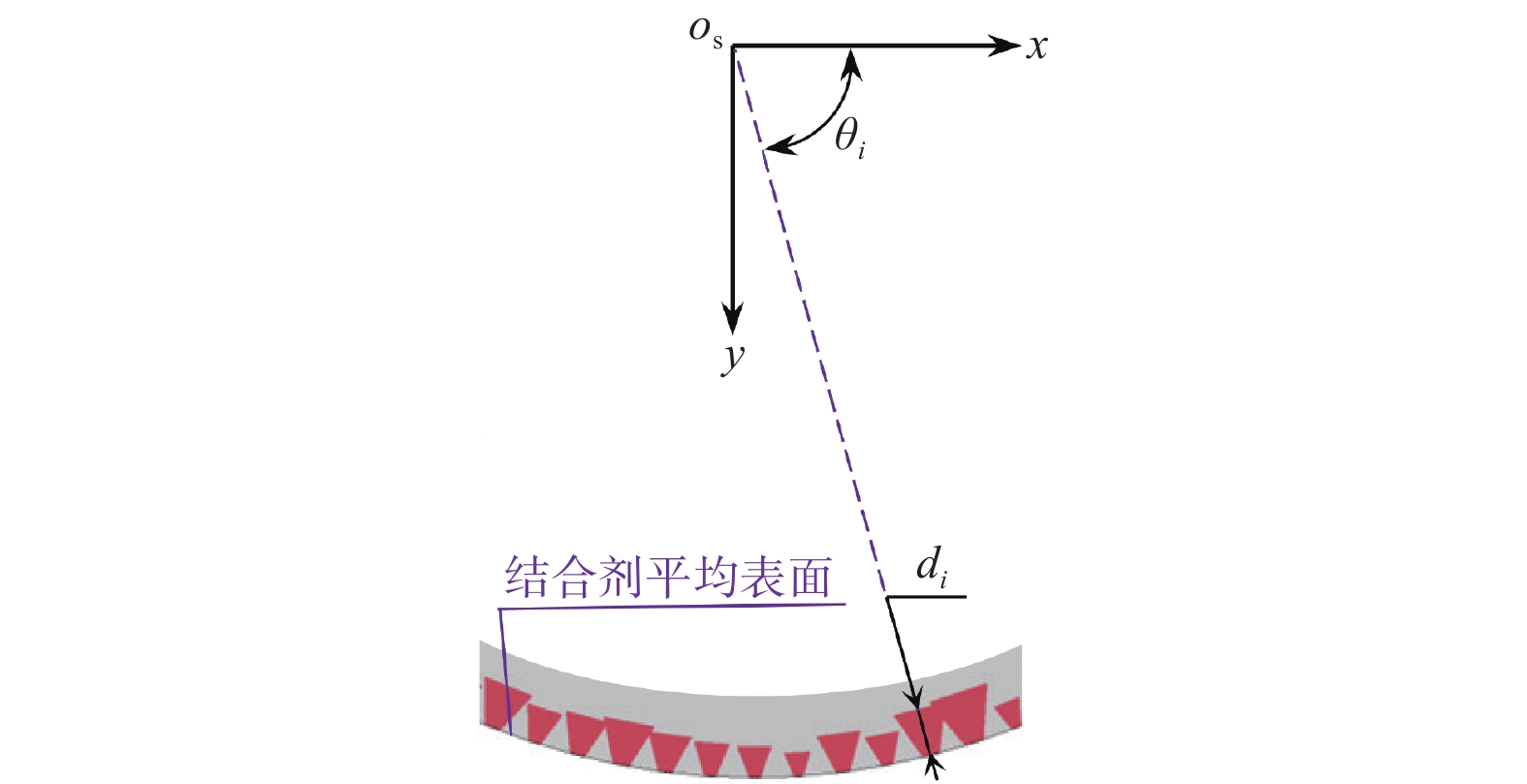

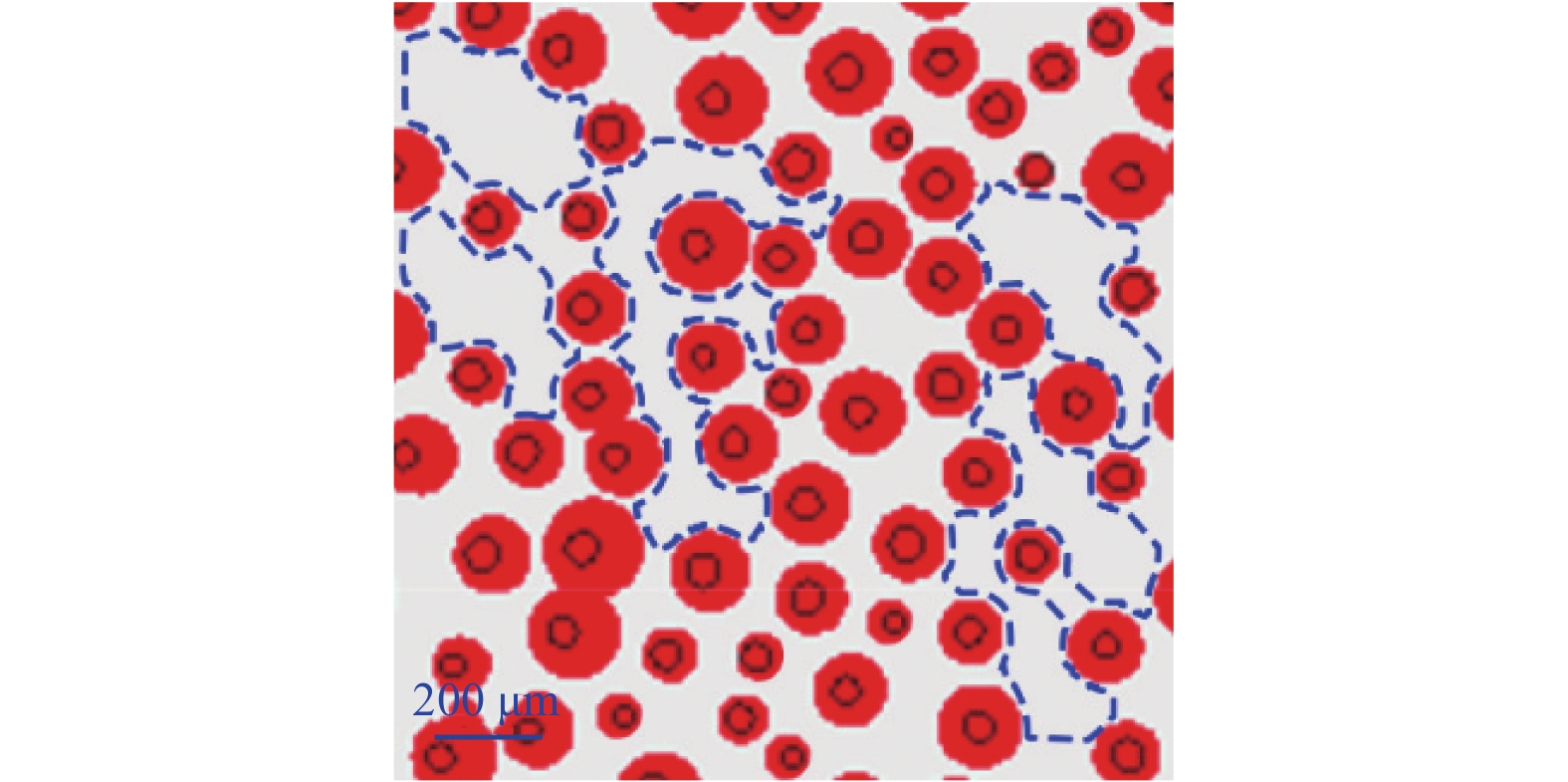

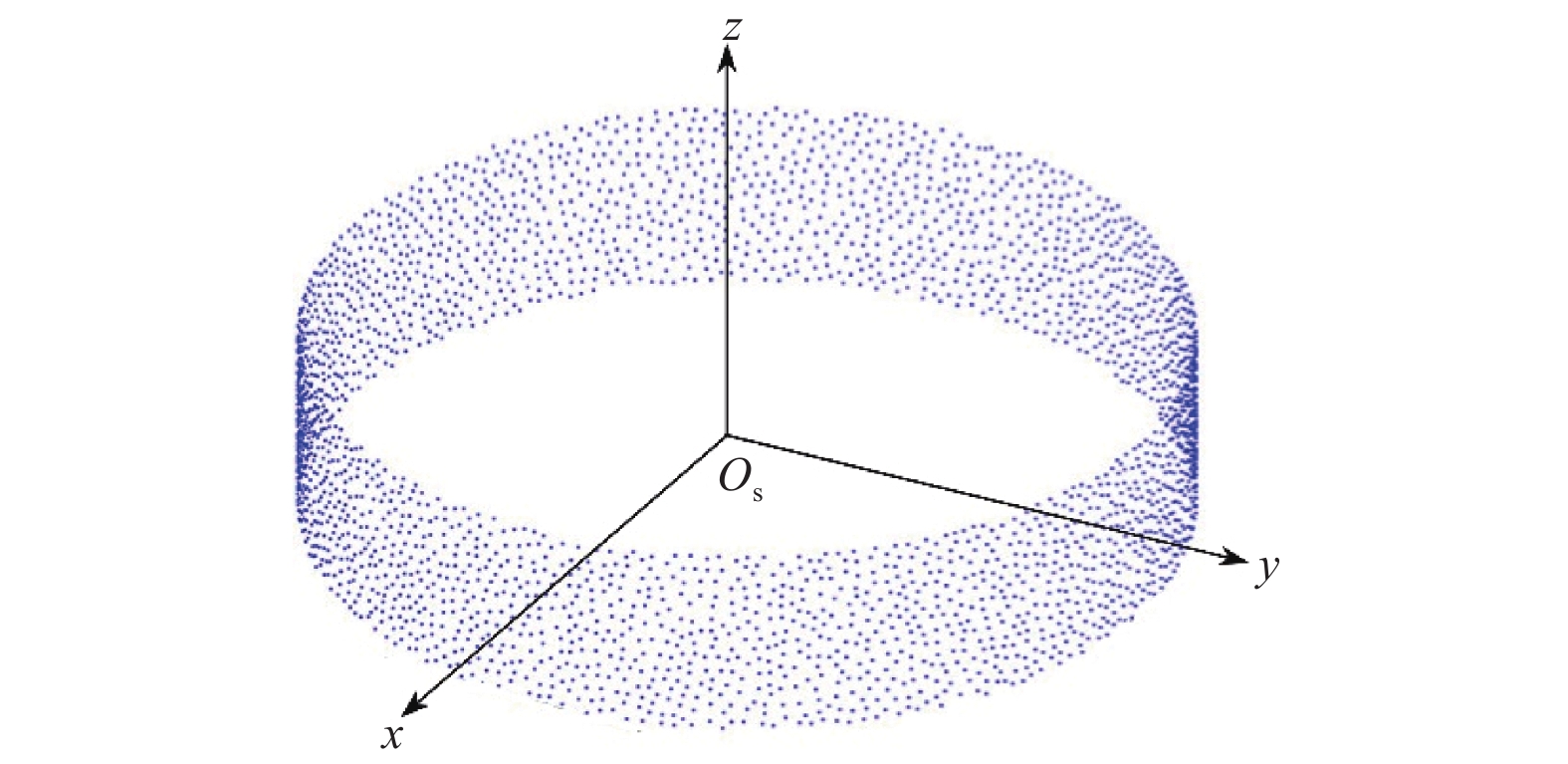

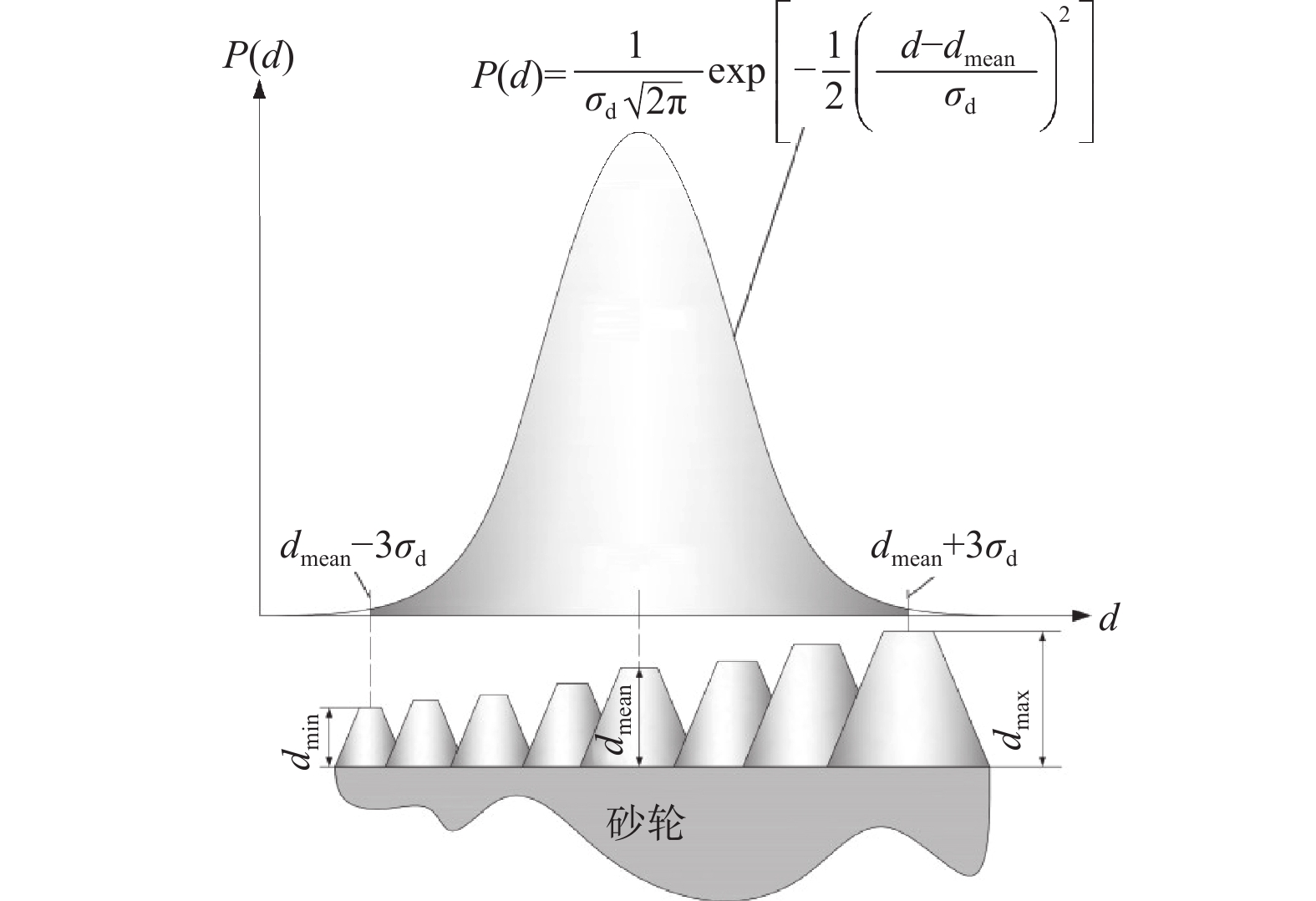

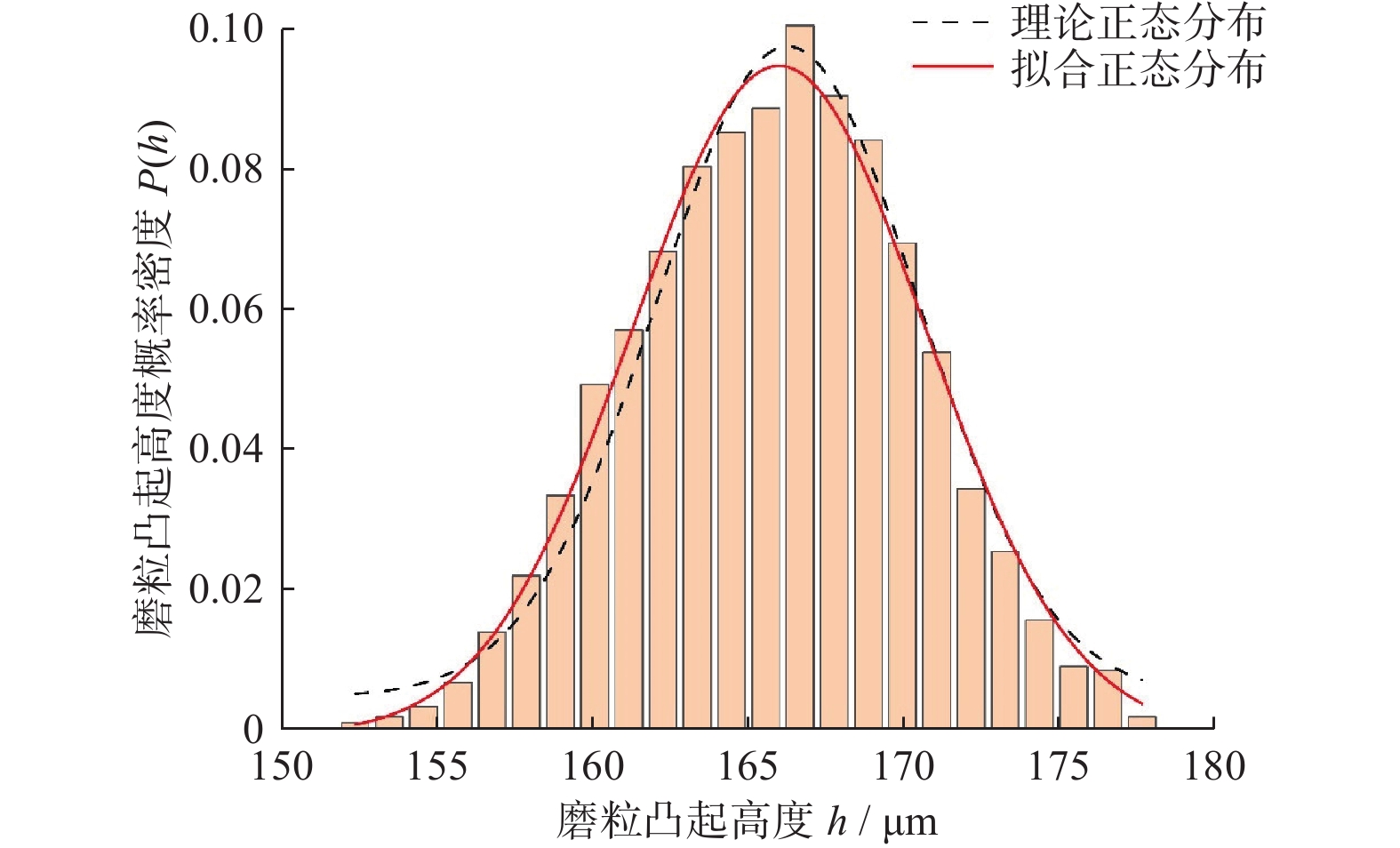

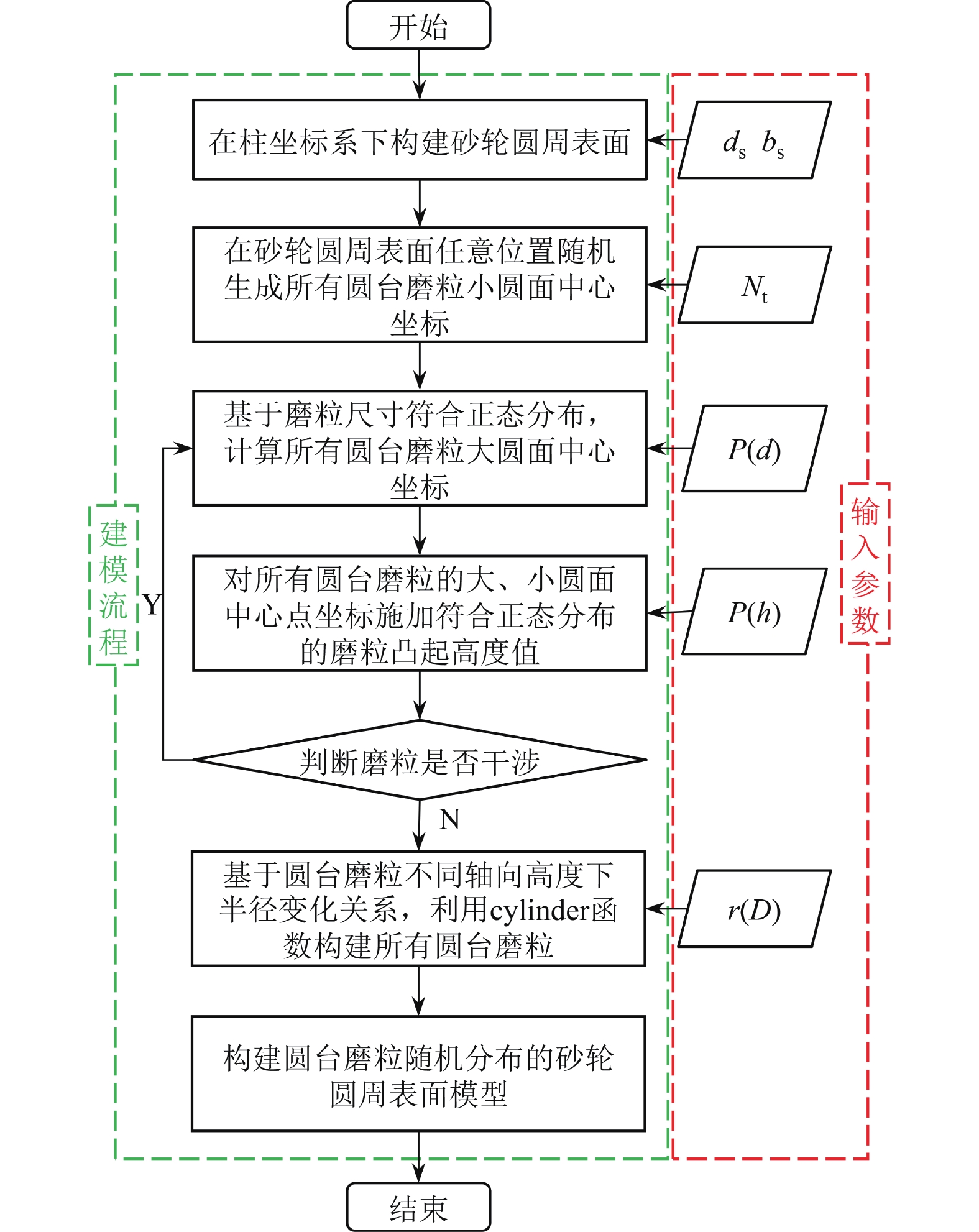

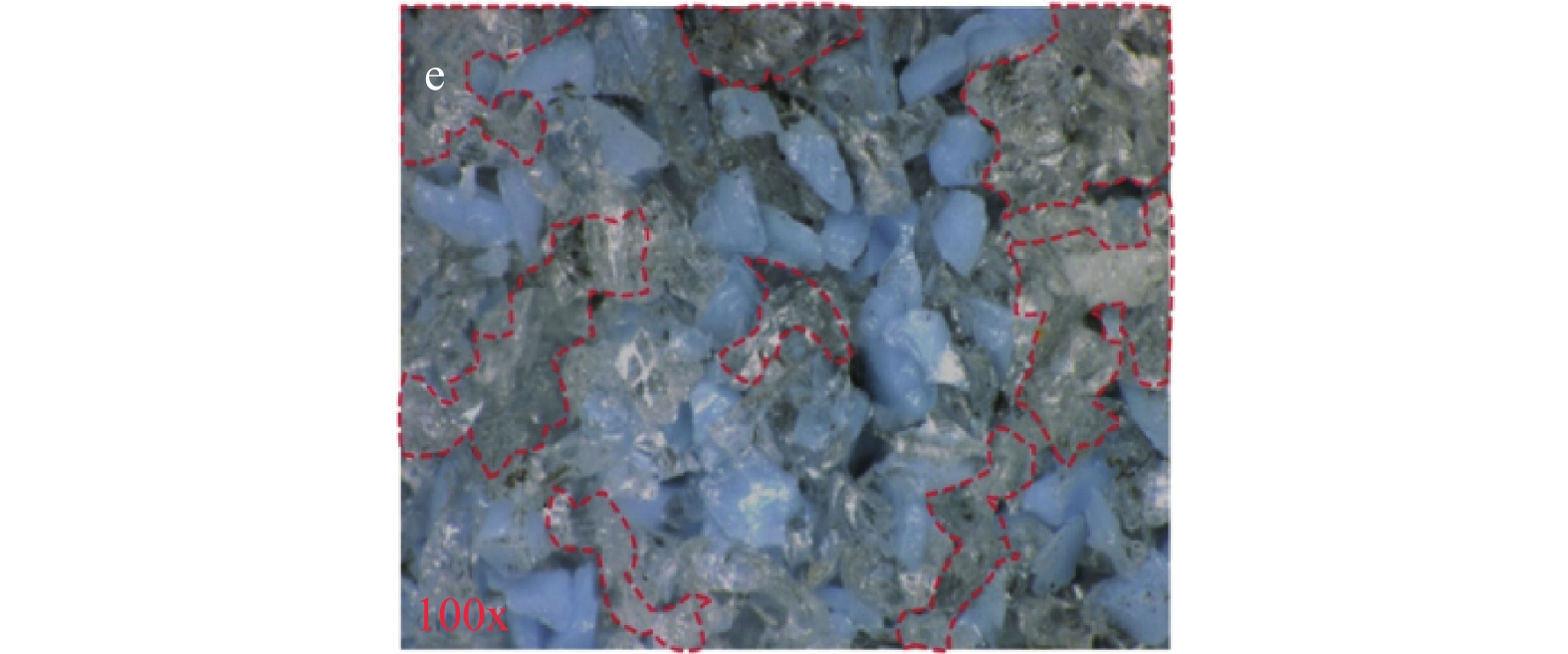

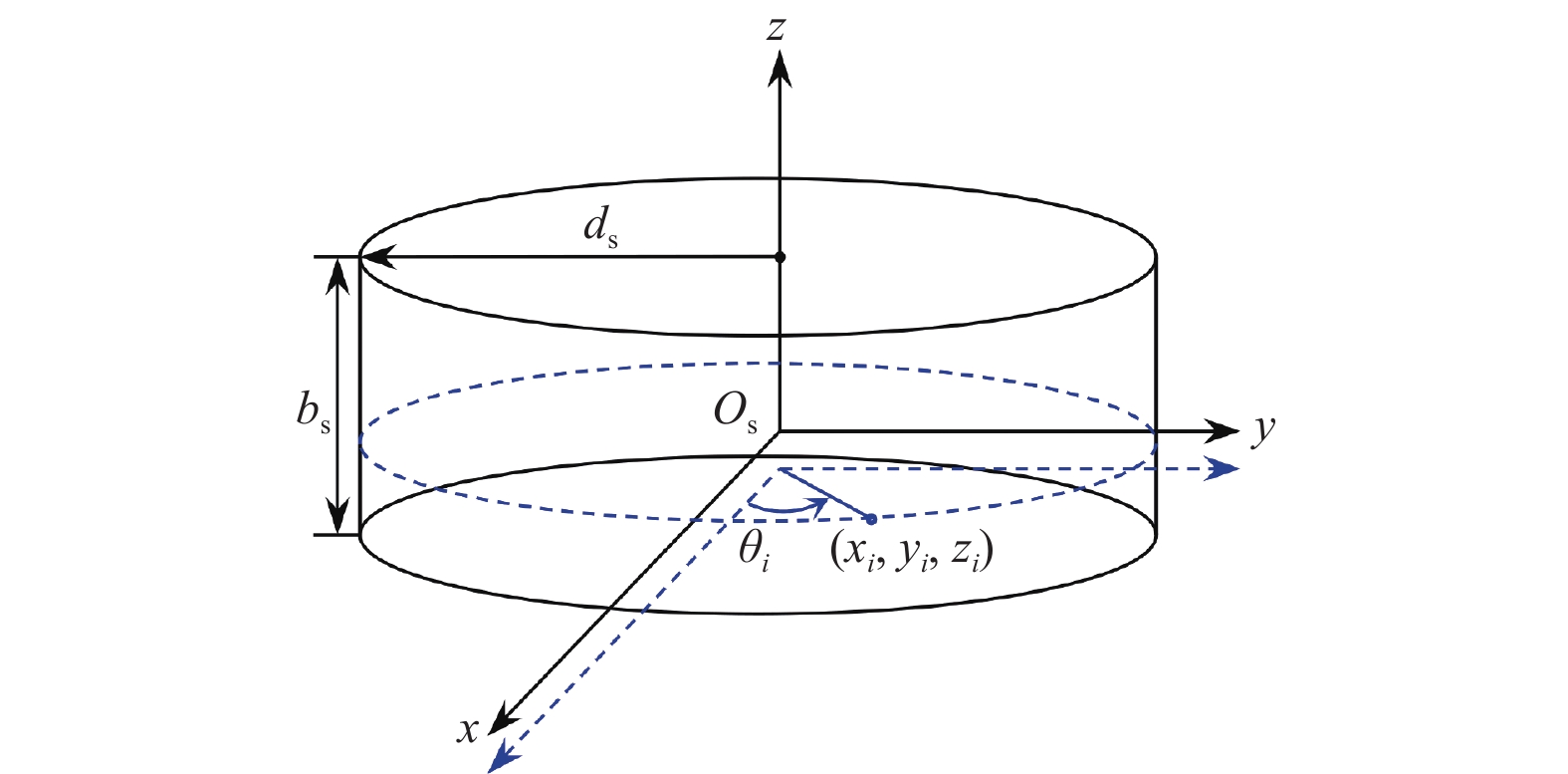

  •   Objectives  Due to the complexity of the grinding process, the study of the grinding mechanism has always been a research hotspot in the field of precision grinding. The establishment of an accurate surface topography model of the grinding wheel circumference is an important basis for studying the grinding mechanism. The surface topography of the corundum grinding wheel is accurately described using four parameters, namely the shape of the abrasive grain, the size of the abrasive grain, the height of the abrasive grain bulge and the number of abrasive grains per unit area. The corresponding grinding wheel model is established using Matlab.  Methods  To construct a circumferential surface morphology model of the corundum grinding wheel using Matlab simulation software, the geometric shape of the abrasive particles is first simplified to a truncated cone with a cone angle of 45° based on the actual shape of the abrasive particles in the corundum grinding wheel. By using the center coordinates of the large and small circular surfaces of the truncated cone abrasive particles and the radius variation relationship at different axial heights, an arbitrary truncated cone particle with size d is constructed using the cylinder function. Secondly, based on the corresponding grinding wheel circumferential surface established in the cylindrical coordinate system, the rand random function is used to randomly generate Nt grinding particle position coordinates on the circumferential surface. Based on the phenomenon that the grinding particle size and the protrusion height both follow the normal distribution law, the normrnd function is used to generate circular truncated grinding particles with randomly distributed positions on the grinding wheel circumferential surface. Then, a collision detection method is used to check whether there is interference between the abrasive grains, that is, the distance between the centers of the small circular surfaces of any two adjacent truncated cone abrasive grains should be greater than or equal to the sum of the radii of the large circular surfaces of the two abrasive grains. Finally, the real grinding wheel surface topography and the constructed grinding wheel surface topography model are compared and analyzed to determine the accuracy of the modeling method in this paper.  Results  A corundum grinding wheel model is constructed with a diameter and width of 20 mm and 4.5 mm, particle size code of F80, grinding wheel structure number of 7, abrasive rate of 48% and grinding particle size of 152 to 178 μm. The following results are obtained: (1) The distance between any adjacent truncated cone abrasive grains is narrow, and there is no interference between abrasive particles. The position distribution of abrasive particles on the surface of the grinding wheel is in accordance with the random distribution characteristics, and the surface topography of the grinding wheel produces blocky and narrow strip-shaped gap areas. (2) The total number of abrasive grains calculated theoretically is 9 342, while the total number of abrasive grains generated in the model is 8 626, with a relative error between the two of only 7.66%. (3) The size distribution of the abrasive grains and the protrusion height distribution of the abrasive grains in the model are statistically analyzed, and it is found that the distribution patterns are consistent with the normal distribution curve set in the modeling.  Conclusions  The abrasive grain shape can be set to a truncated cone with a cone angle of 45°, and the size of the truncated cone abrasive grains can be converted from spherical abrasive grains based on the principle of volume invariance, which aligns with the actual abrasive grain shapes observed in real grinding wheels during the grinding process. Compared with the traditional modeling method for grinding wheel morphology, the modeling method proposed in this paper does not require complex coordinate transformations between the grinding wheel circumferential surface and its unfolded plane, and can obtain a model of the grinding wheel circumferential surface morphology where the size of the truncated cone abrasive grains and the height of the protrusions follow the normal distribution law, and the position of the abrasive particles are randomly distributed. The model has high similarity to the distribution characteristics of real grinding wheel topography, and the grinding wheel surface forms irregular block-shaped and narrow strip-shaped gap areas. Therefore, this modeling method is suitable for the establishment of a corundum grinding wheel circumferential surface topography model. The microscopic contact mechanism between the grinding wheel and the workpiece surface can be further explored through this model, and a grinding surface topography prediction and analysis model can be established.



    • FullText(HTML)
  • loading
    • References(22)
  • [1]
    ZHONG Z W. Advanced polishing, grinding and finishing processes for various manufacturing applications: A review [J]. Materials and Manufacturing Processes,2020,35(12):1279-1303. doi: 10.1080/10426914.2020.1772481
    [2]
    CAO Y, YIN J F, DING W F, et al. Alumina abrasive wheel wear in ultrasonic vibration-assisted creep-feed grinding of inconel 718 nickel-based superalloy [J]. Journal of Materials Processing Technology,2021,297:117241. doi: 10.1016/j.jmatprotec.2021.117241
    [3]
    DURGUMAHANTI U S P, SINGH V, RAO P V. A new model for grinding force prediction and analysis [J]. International Journal of Machine Tools and Manufacture,2010,50: (3):231-241. doi: 10.1016/j.ijmachtools.2009.12.004
    [4]
    MENG Q Y, GUO B, ZHAO Q L, et al. Modelling of grinding mech-anics: A review [J]. Chinese Journal of Aeronautics,2023,36(7):25-39. doi: 10.1016/j.cja.2022.10.006
    [5]
    王德祥, 孙树峰, 颜丙亮, 等. 已加工表面热源模型研究及磨削温度场数值模拟 [J]. 西安交通大学学报,2018,52(4):84-89. doi: 10.7652/xjtuxb201804012

    WANG Dexiang, SUN Shufeng, YAN Bingliang, et al. Modeling of heat source on machined surface and numerical simulation for grinding temperature field [J]. Journal of Xi’an Jiaotong University,2018,52(4):84-89. doi: 10.7652/xjtuxb201804012
    [6]
    LAN S L, JIAO F. Modeling of heat source in grinding zone and numerical simulation for grinding temperature field [J]. The International Journal of Advanced Manufacturing Technology,2019,103(5/6/7/8):3077-3086. doi: 10.1007/s00170-019-03662-w
    [7]
    NIE Z G, WANG G, WANG L P, et al. A coupled thermomechanical modeling method for predicting grinding residual stress based on randomly distributed abrasive grains [J]. Journal of Manufacturing Science and Engineering,2019,141(8):081005. doi: 10.1115/1.4043799
    [8]
    WU Z H, ZHANG L C. Analytical grinding force prediction with random abrasive grains of grinding wheels [J]. International Journal of Mechanical Sciences,2023,250:108310. doi: 10.1016/j.ijmecsci.2023.108310
    [9]
    言兰. 基于单颗磨粒切削的淬硬模具钢磨削机理研究 [D]. 长沙: 湖南大学, 2010.

    YAN Lan. Research on grinding mechanism of hardened cold-work die steel based on single grin cutting [D]. Changsha: Hunan University, 2010.
    [10]
    LIU M Z, LI C H, ZHANG Y B, et al. Analysis of grinding mechanics and improved grinding force model based on randomized grain geometric characteristics [J]. Chinese Journal of Aeronautics,2023,36(7):160-193. doi: 10.1016/j.cja.2022.11.005
    [11]
    MA Z L, WANG Q H, CHEN H, et al. A grinding force predictive model and experimental validation for the laser-assisted grinding (LAG) process of zirconia ceramic [J]. Journal of Materials Processing Technology,2022,302:117492. doi: 10.1016/j.jmatprotec.2022.117492
    [12]
    ZHANG Y B, LI C H, JI H J, et al. Analysis of grinding mechanics and improved predictive force model based on material-removal and plastic-stacking mechanisms [J]. International Journal of Machine Tools and Manufacture,2017,122:81-97. doi: 10.1016/j.ijmachtools.2017.06.002
    [13]
    JAMSHIDI H, GURTAN M, BUDAK E. Identification of active number of grits and its effects on mechanics and dynamics of abrasive processes [J]. Journal of Materials Processing Technology,2019,273:116239. doi: 10.1016/j.jmatprotec.2019.05.020
    [14]
    WANG D X, GE P Q, BI W B, et al. Grain trajectory and grain workpiece contact analyses for modeling of grinding force and energy partition [J]. The International Journal of Advanced Manufacturing Technology,2014,70(9):2111-2123. doi: 10.1007/s00170-013-5428-5
    [15]
    王胜. 纳米粒子射流微量润滑磨削表面形貌创成机理与实验研究[D]. 青岛: 青岛理工大学, 2013.

    WANG Sheng. Generating mechanism and experimental investigation on surface topography in the grinding process using MQL by nanopaticles jet [D]. Qingdao: Qingdao University of Technology, 2013.
    [16]
    LIU W, DENG Z, SHANG Y, et al. Parametric evaluation and three-dimensional modelling for surface topography of grinding wheel [J]. International Journal of Mechanical Sciences,2019,155:334-342. doi: 10.1016/j.ijmecsci.2019.03.006
    [17]
    陈豪, 赵继, 徐秀玲, 等. 基于凸多面体碰撞检测的虚拟砂轮建模研究 [J]. 中国机械工程,2022,33(2):127-133. doi: 10.3969/j.issn.1004-132X.2022.02.001

    CHEN Hao, ZHAO Ji, XU Xiuling, et al. Research on virtual grinding wheel modeling based on convex polyhedron collision detection [J]. China Mechanical Engineering,2022,33(2):127-133. doi: 10.3969/j.issn.1004-132X.2022.02.001
    [18]
    LIU Y M, WARKENTIN A, BAUER R, et al. Investigation of different grain shapes and dressing to predict surface roughness in grinding using kinematic simulations [J]. Precision Engineering,2013,37(3):758-764. doi: 10.1016/j.precisioneng.2013.02.009
    [19]
    PAWLUS P, REIZER R, KROLCZYK G M. Modelling and prediction of surface textures after abrasive machining processes: A review [J]. Measurement,2023,220:113337. doi: 10.1016/j.measurement.2023.113337
    [20]
    KOSHY P, IVES L K, JAHANMIR S. Simulation of diamond-ground surface [J]. International Journal of Machine Tools and Manufacture,1999,39(9):1451-1470. doi: 10.1016/S0890-6955(99)00002-4
    [21]
    WANG S, LI C H, ZHANG D K, et al. Modeling the operation of a common grinding wheel with nanoparticle jet flow minimal quantity lubrication [J]. The International Journal of Advanced Manufacturing Technology,2014,74(5/6/7/8):835-850. doi: 10.1007/s00170-014-6032-z
    [22]
    TAWAKOLI T, HADAD M J, SADEGHI M H. Investigation on minimum quantity lubricant-MQL grinding of 100Cr6 hardened steel using different abrasive and coolant-lubricant types [J]. International Journal of Machine Tools and Manufacture,2010,50(8):698-708. doi: 10.1016/j.ijmachtools.2010.04.009
