Temperature simulation analysis and wear experimental of diamond abrasive grains cutting steel mixed materials

WEI Min; SHI Yongjin; GUO Zihang

doi:10.13394/j.cnki.jgszz.2024.0128

Volume 45 Issue 3

Jun. 2025

Turn off MathJax

Article Contents

Article Navigation > Diamond & Abrasives Engineering > 2025 > 45(3): 342-351

WEI Min, SHI Yongjin, GUO Zihang. Temperature simulation analysis and wear experimental of diamond abrasive grains cutting steel mixed materials[J]. Diamond & Abrasives Engineering, 2025, 45(3): 342-351. doi: 10.13394/j.cnki.jgszz.2024.0128

Citation:

WEI Min, SHI Yongjin, GUO Zihang. Temperature simulation analysis and wear experimental of diamond abrasive grains cutting steel mixed materials[J]. Diamond & Abrasives Engineering, 2025, 45(3): 342-351. doi: 10.13394/j.cnki.jgszz.2024.0128

Citation:

PDF( 3200 KB)

Temperature simulation analysis and wear experimental of diamond abrasive grains cutting steel mixed materials

doi: 10.13394/j.cnki.jgszz.2024.0128

WEI Min^{1, 2
,},
SHI Yongjin³,
GUO Zihang⁴

1.
College of Marine Geosciences, Ocean University of China, Qingdao 266100, Shandong, China
2.
China Petroleum and Chemical Corporation Shengli Oilfield Branch Offshore Oil Production Plant, Dongying 257237, Shandong, China
3.
Drilling Technology Research Institute, Sinopec Shengli Petroleum Engineering Co., Ltd., Dongying 257237, Shandong, China
4.
College of Mechanical and Electrical Engineering, Harbin Engineering University, Harbin 150001, China

More Information

Received Date: 2024-08-20
Accepted Date: 2024-10-21
Rev Recd Date: 2024-09-14

Abstract

Abstract

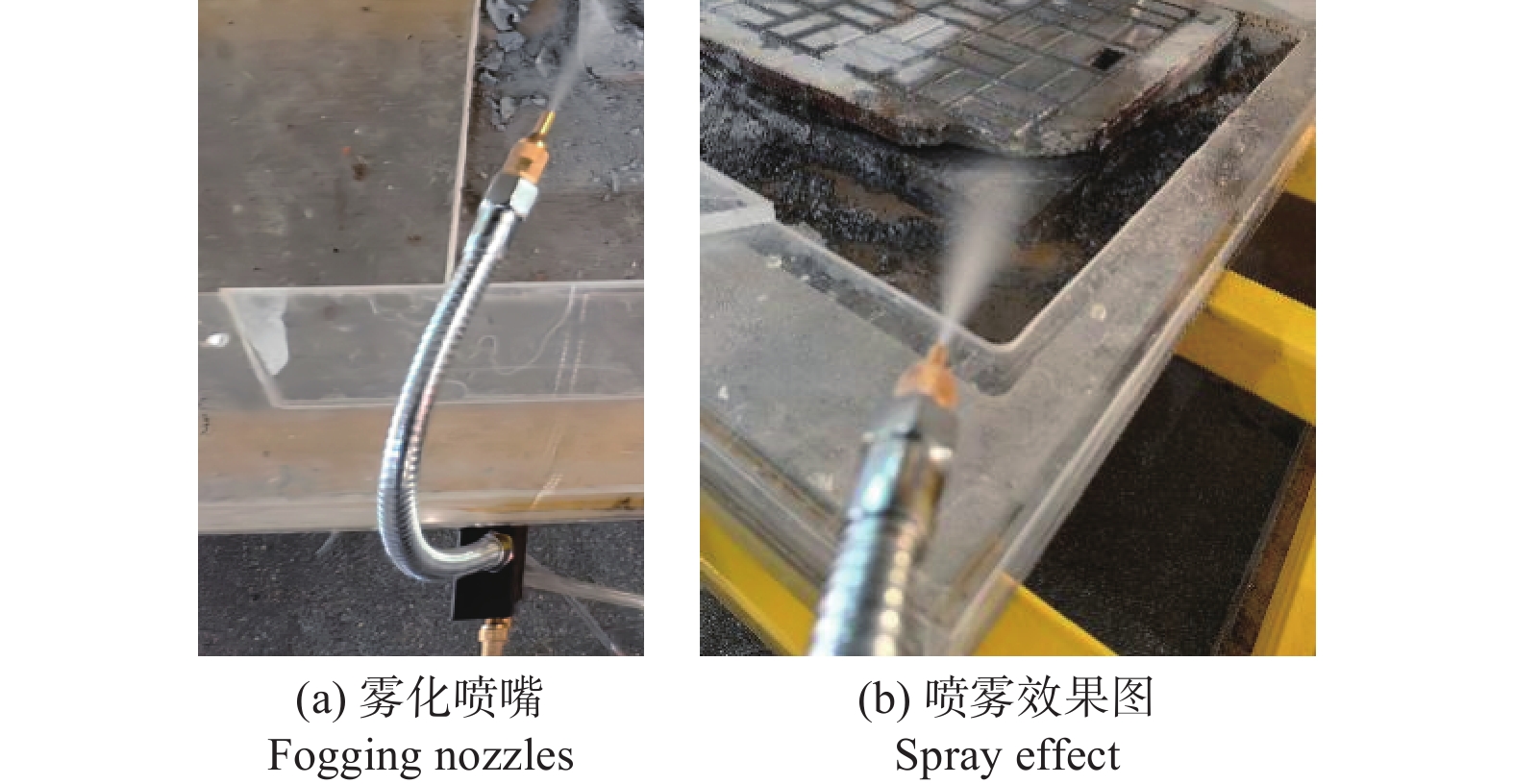

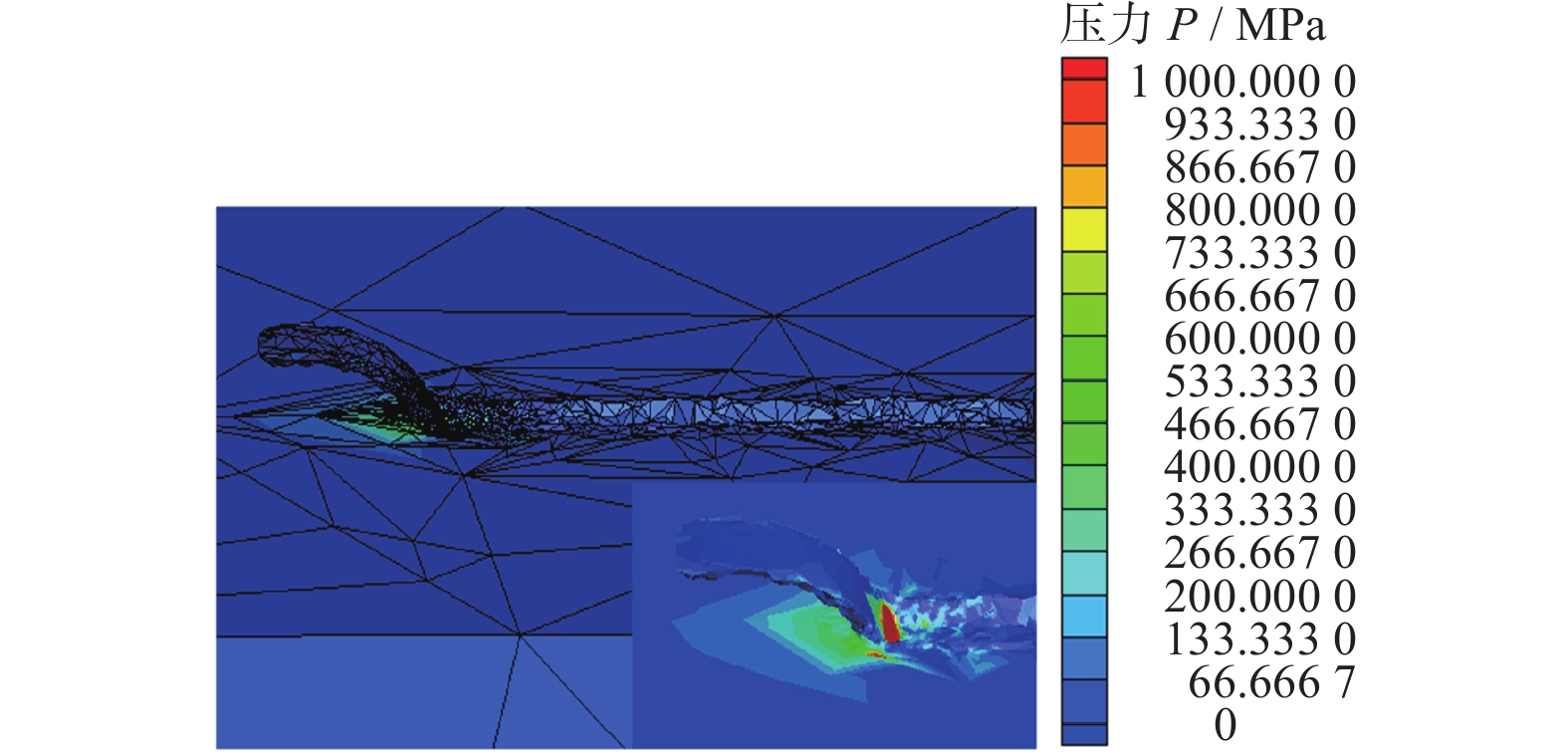

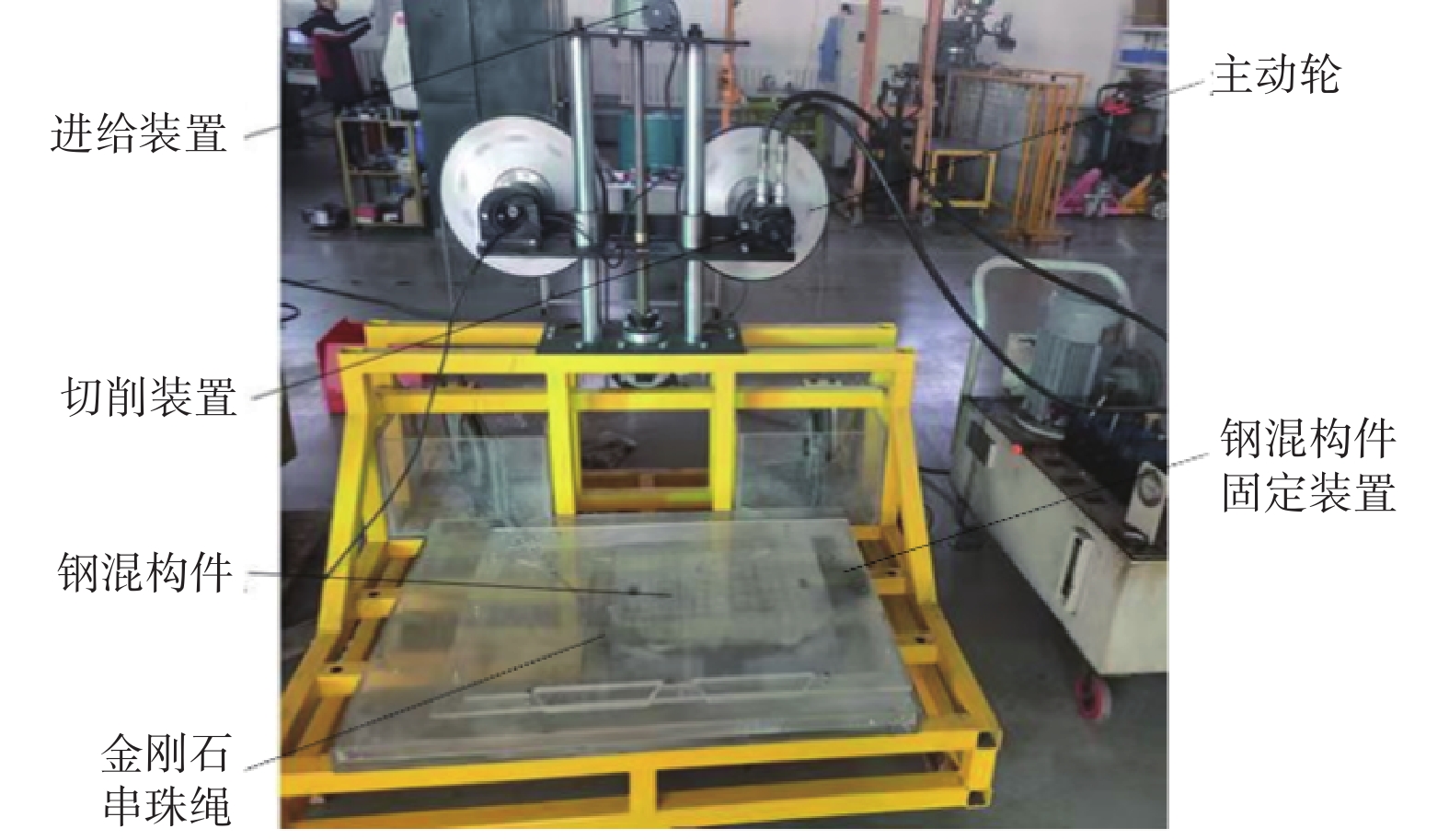

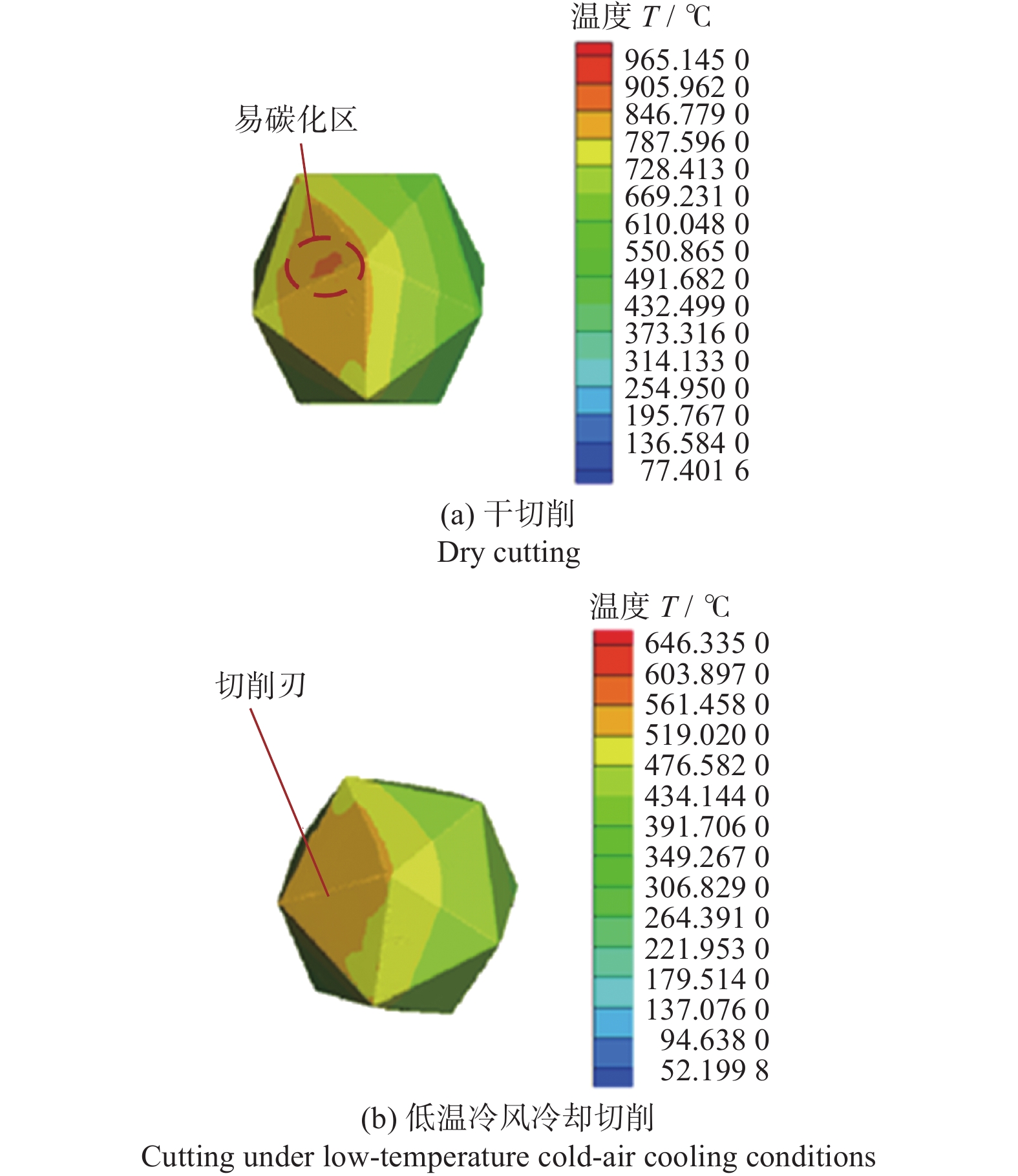

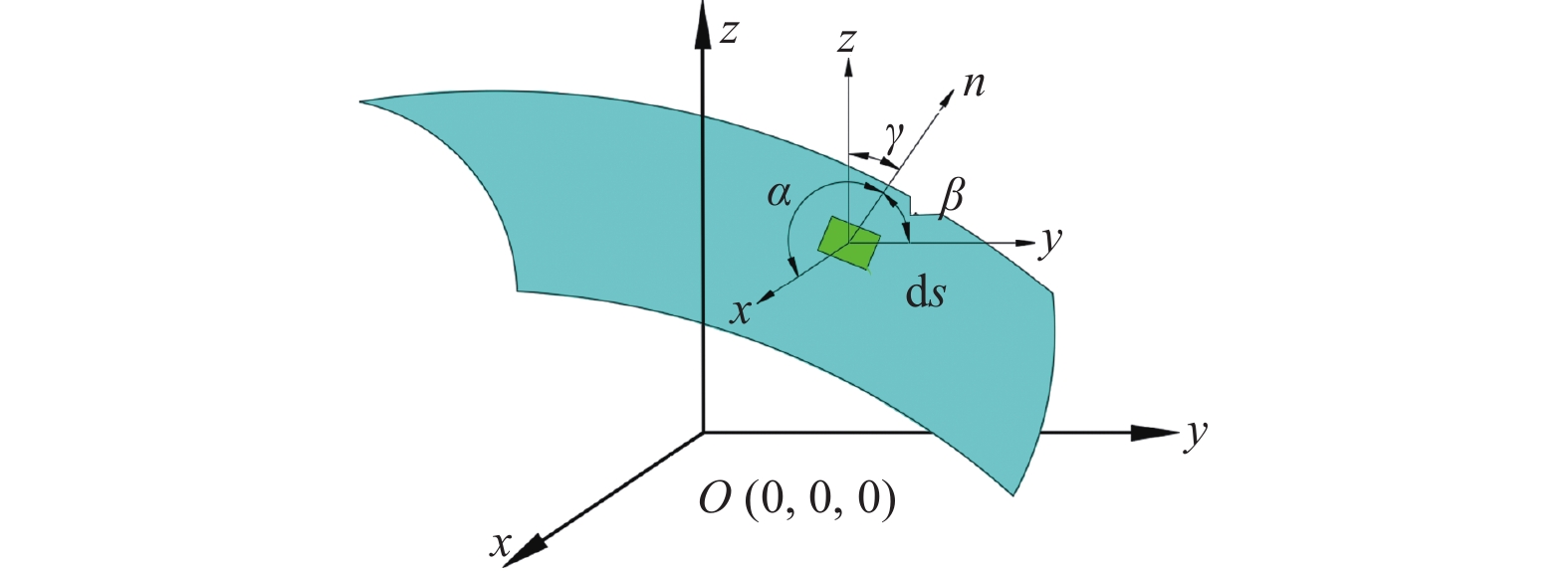

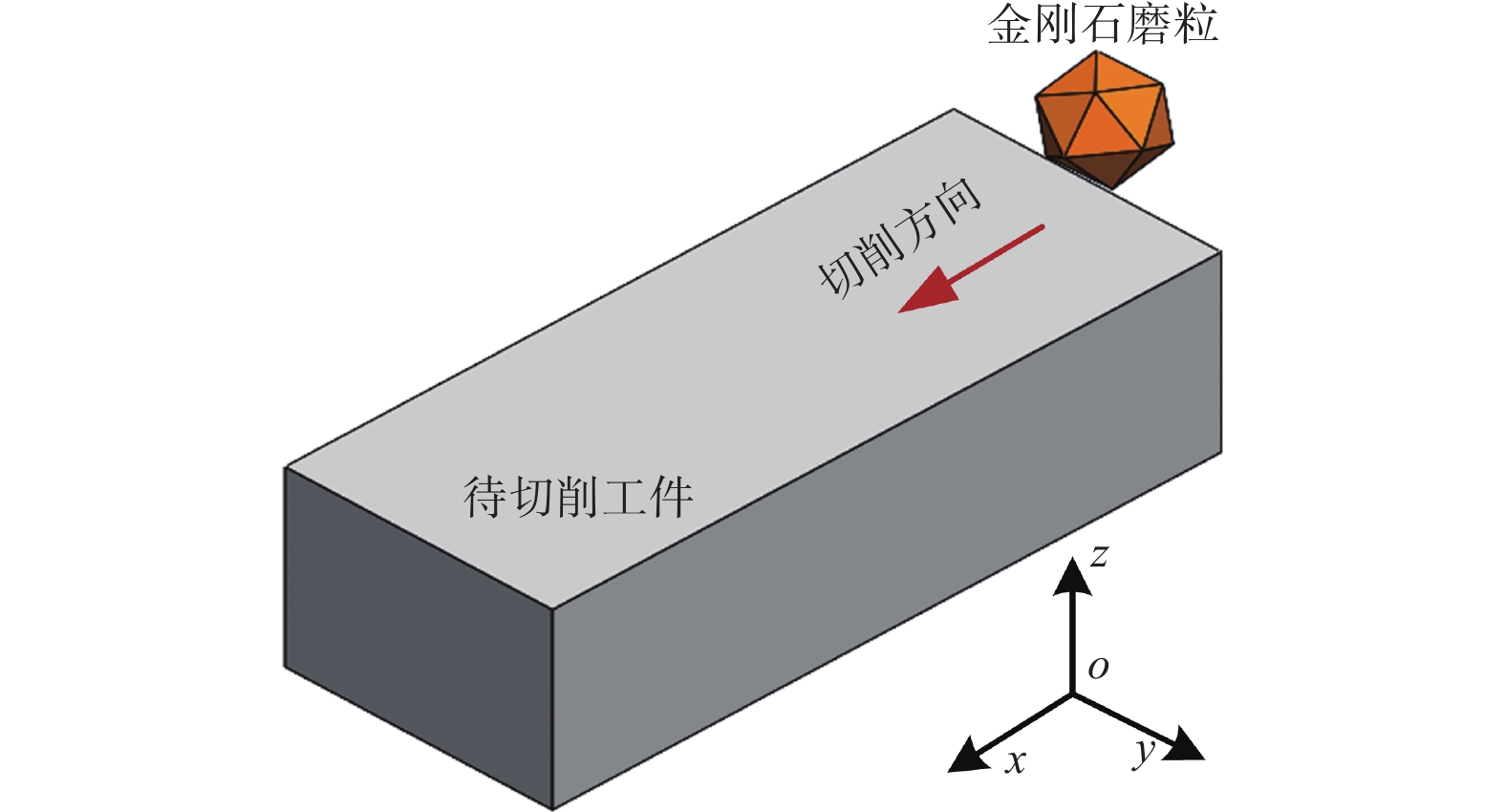

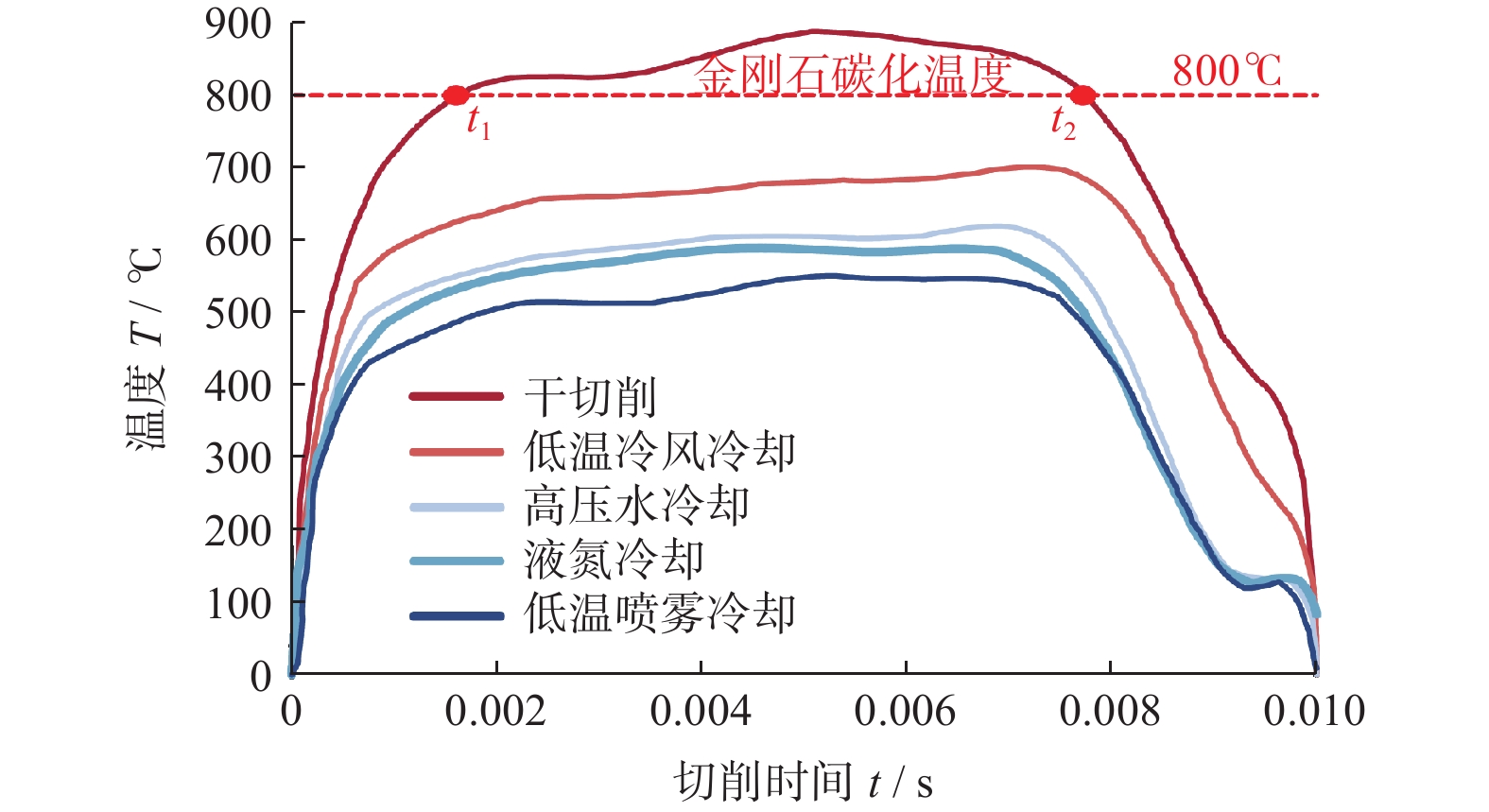

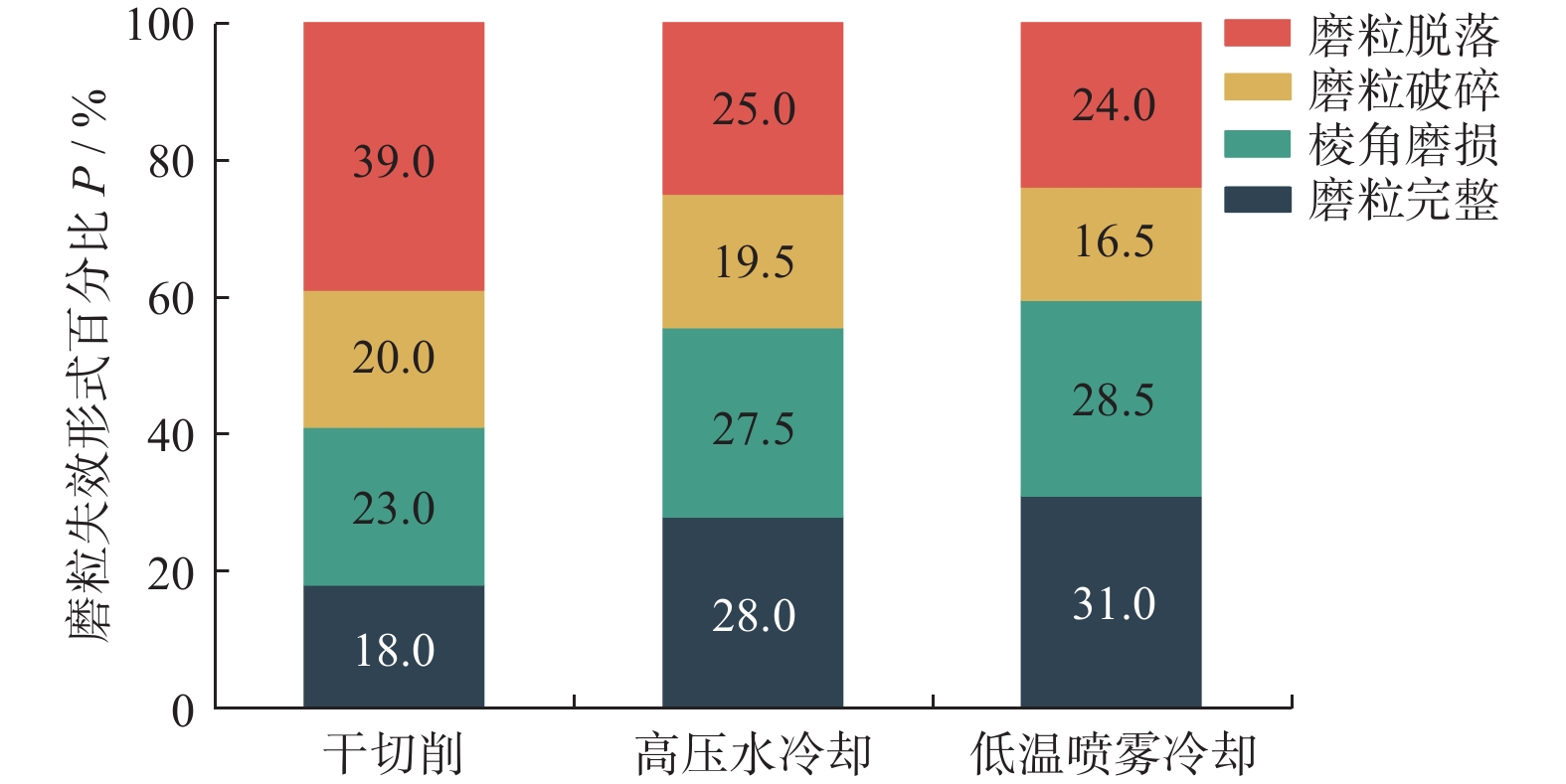

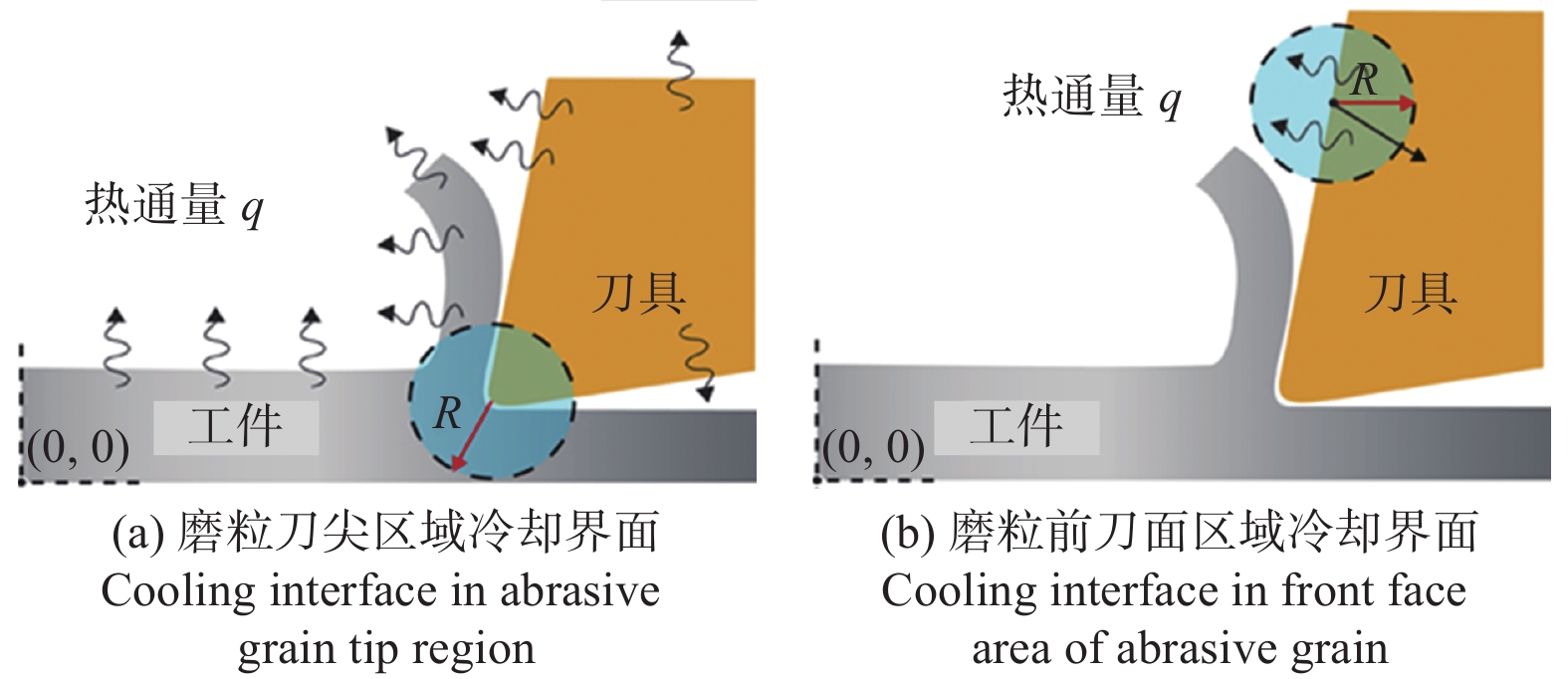

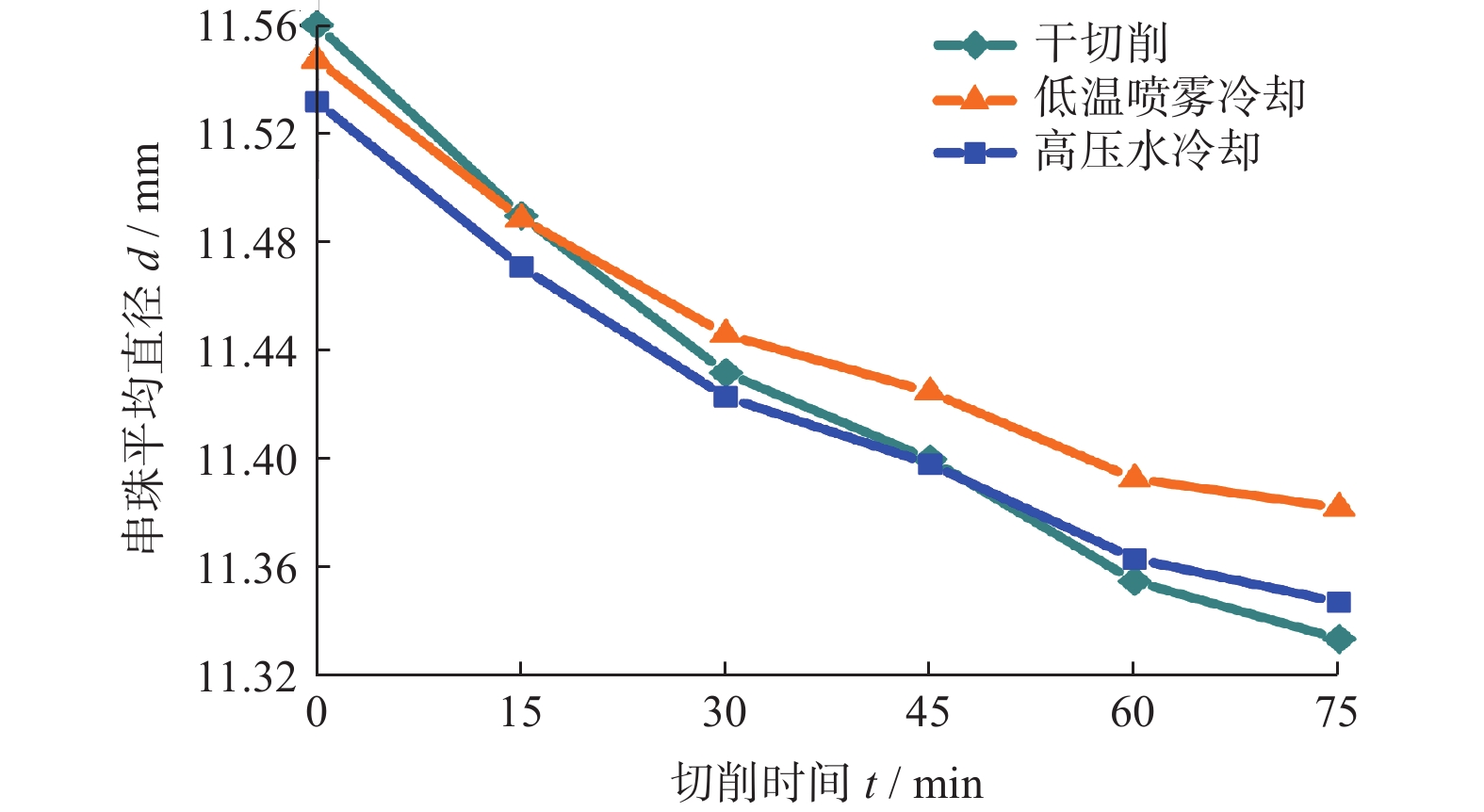

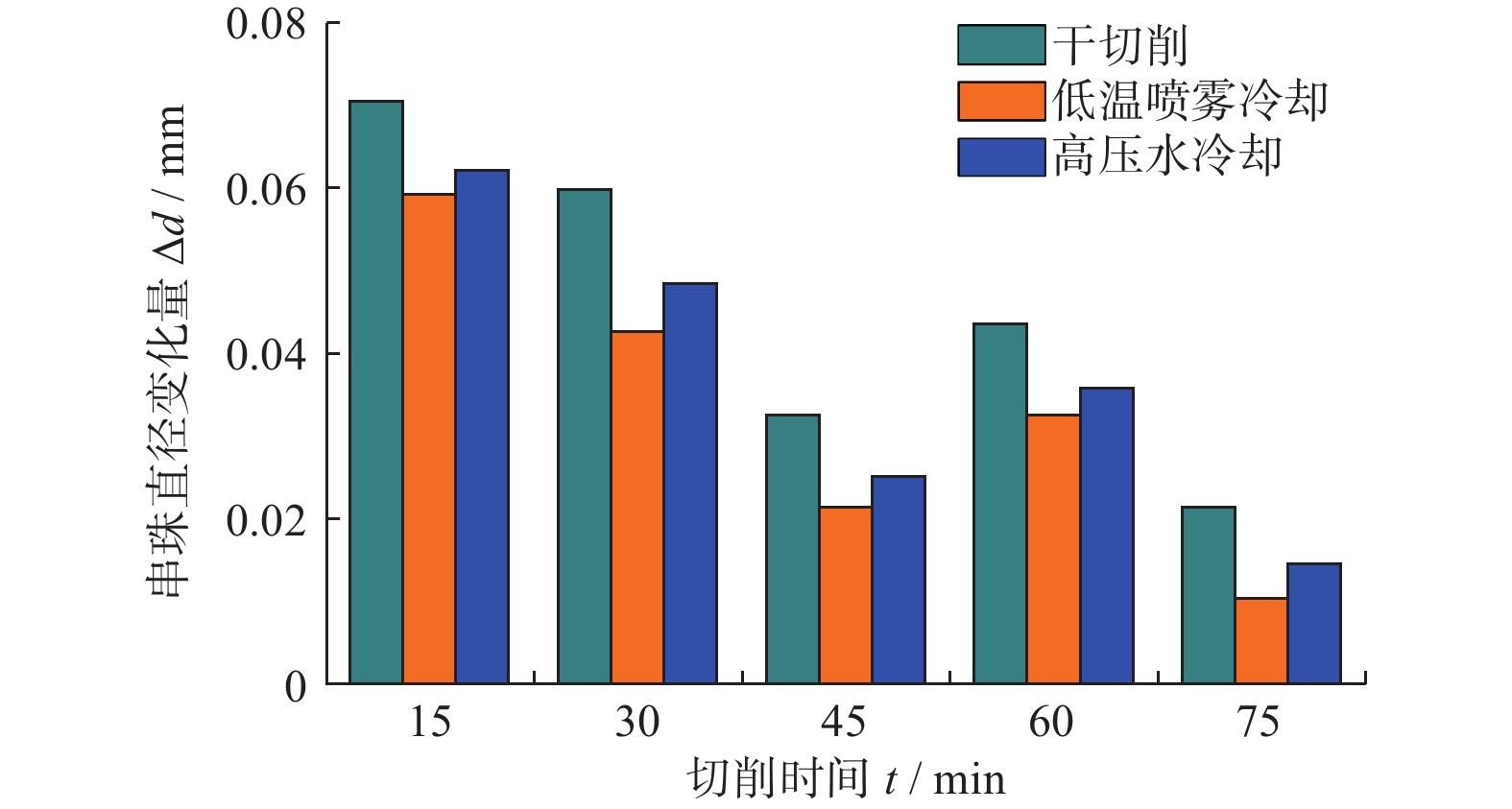

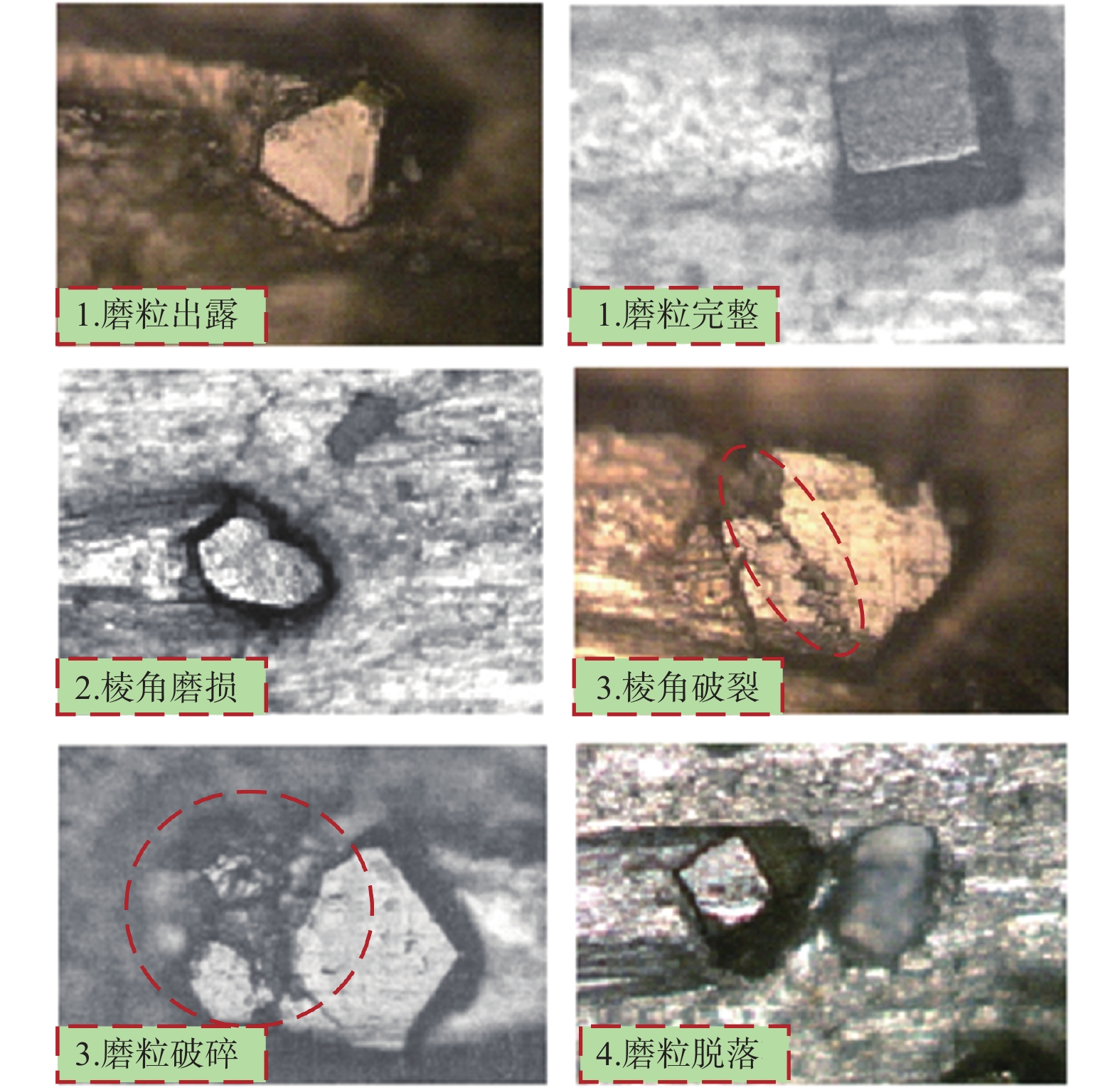

Objectives Diamond wire saw cutting, being environmentally friendly and unaffected by water depth, structure material, shape, or size, has become the preferred method for dismantling large oceanic structures. However, when cutting jackets above the water surface, the elevated temperatures in the cutting zone can lead to excessive wear on the wire saw and even result in cutting failure. To address this issue, this paper integrates theoretical, simulation, and experimental analyses to examine the impact of various cooling conditions on cutting zone temperature and tool wear. Furthermore, it identifies an optimal cooling method for the dismantling process of jackets using diamond wire saws on the sea surface. Methods First, based on the principles of thermal conductivity, a theoretical model of the temperature field in the cutting zone of diamond grains is developed to analyze the influence of cutting and media parameters on heat generation. Next, using AdvantEdge simulation software, a kinetic simulation model of diamond grit cutting reinforced concrete materials is established under various working conditions, including dry cutting, low-temperature air cooling, high-pressure water cooling, liquid nitrogen cooling, and low-temperature spray cooling. The temperature rise in the cutting zones under different cooling methods is analyzed. Finally, experimental cutting tests using diamond wire saws on reinforced concrete material workpieces are conducted to investigate the failure behavior and wear rate of the wire saws under different cooling conditions. The optimal cooling method is then identified and validates the simulation results. Results (1) According to the theoretical model of the temperature field in the cutting zone, the surface temperature increases with higher cutting parameters such as feed speed, cutting speed, and cutting time, while it decreases with the increase of medium parameters such as specific heat capacity and thermal conductivity. (2) The cutting simulation study indicates that under dry cutting conditions, the temperature in the cutting zone exceeds the diamond carbonization threshold, significantly compromising the cutting performance of the wire saw. In contrast, all four cooling methods maintain the cutting zone temperature below the diamond carbonization threshold, with low-temperature spray cooling demonstrating the most effective reduction in tool wear. (3) By measuring changes in the outer diameter of the beads on the wire saw, the lowest wear rate is observed under low-temperature spray cooling, which further validates the findings of the cutting simulation study. (4) Scanning electron microscope analysis of the worn diamond abrasive grains reveals four distinct behaviors of wear: intact abrasive grains, abrasive edge wear, surface fragmentation, and abrasive grain detachment. (5) Compared to dry cutting, low-temperature spray cooling increases the percentage of intact abrasive grains from 18% to 31% and reduces the abrasive grain detachment rate from 39% to 24%, thereby significantly enhancing cutting efficiency and extending the service life during diamond wire saw cutting of reinforced concrete materials. Conclusions When dismantling platform structures on the sea surface using diamond wire saws, low-temperature spray cooling is prioritized due to its minimal temperature rise in the cutting zone and the lowest bead wear rate. This approach significantly enhances cutting efficiency and extends the service life of the diamond wire saw.
- diamond beaded rope,
- abrasive grains,
- cooling method,
- cutting temperature,
- abrasive grain failure

FullText(HTML)

References(23)

References

[1]	CHENG J C P, TAN Y, SONG Y Z, et al. A semi-automated approach to generate 4D/5D BIM models for evaluating different offshore oil and gas platform decommissioning options [J]. Visualization in Engineering,2017,5(1):12. doi: 10.1186/s40327-017-0053-2
[2]	TAN Y, SONG Y Z, LIU X, et al. A BIM-based framework for lift planning in topsides disassembly of offshore oil and gas platforms [J]. Automation in Construction,2017,79:19-30. doi: 10.1016/j.autcon.2017.02.008
[3]	KOLIAN S R, GODEC M, SAMMARCO P W. Alternate uses of retired oil and gas platforms in the Gulf of Mexico [J]. Ocean & Coastal Management,2019,167:52-59. doi: 10.1016/j.ocecoaman.2018.10.002
[4]	VIDAL P D C J, GONZÁLEZ M O A, VASCONCELOS R M D, et al. Decommissioning of offshore oil and gas platforms: A systematic literature review of factors involved in the process [J]. Ocean Engineering,2022,255:111428. doi: 10.1016/j.oceaneng.2022.111428
[5]	石尚熠. 基于模糊贝叶斯网络的平台水下结构拆除切割方式的风险分析 [D]. 天津: 天津大学, 2021. SHI Shangyi. Risk assessment of cutting methods for offshore structures removal based on fuzzy Bayesian network [D]. Tianjin: Tianjin University, 2021.
[6]	JANJUA S Y, KHAN M R. Environmental implications of offshore oil and gas decommissioning options: An eco-efficiency assessment approach [J]. Environment, Development and Sustainability,2023,25(11):12915-12944. doi: 10.1007/s10668-022-02595-x
[7]	BULL A S, LOVE M S. Worldwide oil and gas platform decommissioning: A review of practices and reefing options [J]. Ocean & Coastal Management,2019,168:274-306.
[8]	TANG Q C, YIN S H, CHEN F J, et al. New technology for cutting ferrous metal with diamond tools [J]. Diamond and Related Materials,2018,88:32-42. doi: 10.1016/j.diamond.2018.06.022
[9]	ZHANG L, SUN Y Q, WANG G, et al. Research on MD simulation for diamond tool cutting iron [J]. Molecular Simulation,2021,47(1):46-57. doi: 10.1080/08927022.2020.1866182
[10]	陈冀渝. 金刚石串珠绳锯的冷却技术 [J]. 石材,2005(9):24-25. doi: 10.3969/j.issn.1005-3352.2005.09.010 CHEN Jiyu. Cooling technology of diamond beaded rope saw [J]. Stone,2005(9):24-25. doi: 10.3969/j.issn.1005-3352.2005.09.010
[11]	LAN Z, SUN Y Q, WANG L Q, et al. Molecular dynamics simulation of diamond cutting iron with water lubrication [J]. Journal of Physics: Conference Series, 2021,1748(6):062048. doi: 10.1088/1742-6596/1748/6/062048
[12]	刘志峰, 张崇高, 任家隆. 干切削加工技术及应用 [M]. 北京: 机械工业出版社, 2005. LIU Zhifeng, ZHANG Chonggao, REN Jialong. Dry cutting machining technology and application [M]. Beijing: China Machine Press, 2005.
[13]	RAHMAN M, SENTHIL K A, SALAM M U. Experimental evaluation on the effect of minimal quantities of lubricant in milling [J]. International Journal of Machine Tools and Manufacture,2002,42(5):539-547. doi: 10.1016/S0890-6955(01)00160-2
[14]	PUŠAVEC F, GRGURAŠ D, KOCH M, et al. Cooling capability of liquid nitrogen and carbon dioxide in cryogenic milling [J]. CIRP Annals,2019,68(1):73-76. doi: 10.1016/j.cirp.2019.03.016
[15]	LI C, XU J Y, CHEN M, et al. Tool wear processes in low frequency vibration assisted drilling of CFRP/Ti6Al4V stacks with forced air-cooling [J]. Wear,2019,426:1616-1623. doi: 10.1016/j.wear.2019.01.005
[16]	AN Q L, FU Y C, XU J H. The application of cryogenic pneumatic mist jet impinging in high-speed milling of Ti-6Al-4V [M]//Advances in Machining & Manufacturing Technology VIII. Stafa: Trans Tech Publications Ltd., 2006: 244-248.
[17]	GÜNAY M, KORKMAZ M E, YAŞAR N. Performance analysis of coated carbide tool in turning of Nimonic 80A superalloy under different cutting environments [J]. Journal of Manufacturing Processes,2020,56:678-687. doi: 10.1016/j.jmapro.2020.05.031
[18]	LV D S, XU J H, DING W F, et al. Tool wear in milling Ti40 burn-resistant titanium alloy using pneumatic mist jet impinging cooling [J]. Journal of Materials Processing Technology,2016,229:641-650. doi: 10.1016/j.jmatprotec.2015.10.020
[19]	LIU E L, WANG R Y, ZHANG Y, et al. Tool wear analysis of cutting Ti-5553 with uncoated carbide tool under liquid nitrogen cooling condition using tool wear maps [J]. Journal of Manufacturing Processes,2021,68:877-887. doi: 10.1080/10584587.2022.2065572
[20]	PEI S H, XUE F, ZHOU Y F, et al. Effects of cryogenic gas jet cooling on milling surface roughness and tool life for GH4169 alloy additive manufacturing parts [J]. Journal of Manufacturing Processes,2023,86:266-281. doi: 10.1016/j.jmapro.2022.12.062
[21]	李瑞. ±400kV换流变阀侧强制水冷套管的运行参数对温度的影响机理 [D]. 北京: 华北电力大学, 2022. LI Rui. Influence mechanism of ±400kV valve side forced cooling bushing’s operating parameters on temperature [D]. Beijing: North China Electric Power University, 2022.
[22]	王大鹏, 许卫士, 李鸿运. 海上风电导管架结构与桩基灌浆连接施工工艺 [J]. 海洋开发与管理,2018,35(S1):88-91. doi: 10.3969/j.issn.1005-9857.2018.z1.017 WANG Dapeng, XU Weishi, LI Hongyun. Construction process of offshore wind power conduit rack structure connected with pile foundation grouting [J]. Ocean Development and Management,2018,35(S1):88-91. doi: 10.3969/j.issn.1005-9857.2018.z1.017
[23]	HUANG Z P, GAO L H, WANG Y W, et al. Determination of the Johnson-cook constitutive model parameters of materials by cluster global optimization algorithm [J]. Journal of Materials Engineering and Performance,2016,25(9):4099-4107. doi: 10.1007/s11665-016-2178-1
